Networking
| Multicast support |
Y |
| Number of VPN connections |
25000 |
| VPN tunnels quantity |
25 |
| Quality of Service (QoS) support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Number of users |
100 user(s) |
Performance
| Heat dissipation |
51.1 BTU/h |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Data transmission
| VPN throughput |
150 Mbit/s |
| Firewall throughput |
600 Mbit/s |
Other features
| Interface |
10/100 LAN |
| Special features |
3G/Analog Modem |
| Compliance industry standards |
IEEE 802.11 a/b/g |
| Power supply type |
AC |
Protocols
| Management protocols |
HTTP, HTTPS, SSH, SNMP v2 |
| Routing protocols |
OSPF |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |

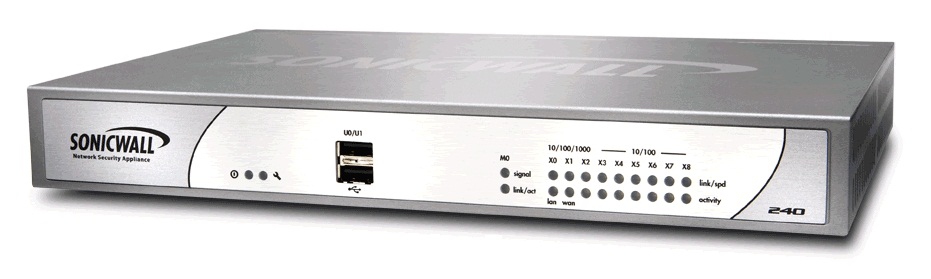

NSA 240 Secure Upgrade Plus 3 Years CGSS, 600 MB/s, Fast Ethernet, 100 users, 256 MB RAM, 2x USB 2.0, SonicOS Enhanced
SonicWALL NSA 240 is a next-generation United Threat Management platform, utilizing a breakthrough multi-core hardware design with 2 cores and 6 GbE interfaces to deliver real-time network protection and application control, reducing complexity without compromising performance, The NSA 240 is well-suited for branch office and distributed environments requiring threat prevention, rapid deployment and lowered total cost of ownership.
The NSA 240 combines high-speed intrusion prevention, file and content inspection and powerful application firewall capabilities with an extensive array of advanced networking and configuration flexibility features that increase the performance and productivity of the network. With its intuitive Web management interface, easy-to-use wizards, and simplified access with SSL-VPN the NSA 240 simplifies deployment and management. The NSA 240 also supports virtual local area networks (VLANs), seamless high availability and QoS features, further extending functionality and reliability throughout the network.
