Security
| Firewall security |
HTTP/S, SMTP, POP3, IMAP, FTP |
Data transmission
| VPN throughput |
625 Mbit/s |
| Mobile VPN SSL |
30 |
| IPS/IDS throughput |
750 Mbit/s |
| Firewall throughput |
1500 Mbit/s |
| Maximum firewall connections |
128000 |
| Maximum firewall connections per second |
7000 |
Networking
| Number of VPN connections |
1000 |
| Number of VLANs |
128 |
| VPN tunnels quantity |
800 |
| Quality of Service (QoS) support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Protocols
| Management protocols |
Web GUI (HTTP, HTTPS), SSH, SNMP v2 |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Routing protocols |
OSPF, RIP-2, RIP-1 |
Other features
| Safety |
XAUTH/RADIUS, Active Directory, SSO, LDAP |
NSA 3500 Secure Upgrade Plus 3 Years CGSS - 1.5 Gbps, 800 VPN, 6 x 10/100/1000Mbits, 128 VLAN, OSPF, RIPv1/v2, 512 MB RAM, 64 W, 5.14 kg

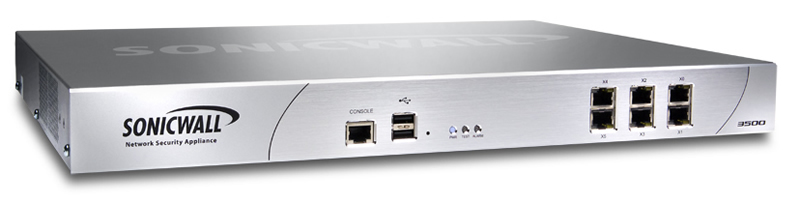

Dell SonicWALL NSA 3500 is a next-generation United Threat Management platform, utilizing a breakthrough multi-core hardware design with 4 cores and 6 GbE interfaces to deliver real-time internal and external network protection without compromising performance.
The NSA 3500 is well-suited for corporate, branch office and distributed environments requiring threat prevention, rapid deployment and lowered TCO. The NSA 3500 combines high-speed intrusion prevention, file and content inspection and powerful application firewall capabilities with an extensive array of advanced networking and configuration flexibility features in an accessible, affordable platform that is easy to deploy and manage in a wide variety of environments.
** Dell SonicWALL NSA 3500 High Availability (HA) Unit, to be used only with another NSA 3500
FEATURES AND BENEFITS
SonicWALL’s next generation security incorporates a new level of UTM that integrates intrusion prevention, gateway anti-virus and anti-spyware and features the Application Firewall suite of confi gurable tools to prevent data leakage and off er granular application control.
Scalable multi-core hardware and reassembly-free deep packet inspection scans and eliminates threats of unlimited fi le sizes, and provides virtually unrestricted concurrent connections with uncompromising speed.
Stateful high availability and load balancing features in SonicOS 5.0 Enhanced maximize total network band-width and maintain seamless network uptime, delivering uninterrupted access to missioncritical resources, and ensuring that VPN tunnels and other network traffi c will not be interrupted in the event of a failover.
Advanced state-of-the-art performance and lowered TCO are achieved by using the processing power of multiple cores in unison to dramatically increase throughput and provide simultaneous inspection capabilities, while lowering power consumption.
Advanced routing services and networking features incorporate advanced networking and security technology including 802.1q VLANs, WAN/WAN failover, zone and object-based management, load balancing, advanced NAT modes and more, providing granular confi guration fl exibility and comprehensive protection at the administrator’s discretion.
Standards-based Voice over IP (VoIP) capabilities provide the highest levels of security for every element of the VoIP infrastructure, from communications equipment to VoIP-ready devices such as SIP Proxies, H.323 Gatekeepers and Call Servers.
Secure distributed wireless LAN services enable the appliance to function as a secure wireless switch and controller that automatically detects and confi gures SonicPoints,™ SonicWALL wireless access points, for secure remote access in distributed network environments.
Onboard Quality of Service (QoS) features use industry standard 802.1p and Diff erentiated Services Code Points (DSCP) Class of Service (CoS) designators to provide power-ful and fl exible bandwidth management that is vital for Voice over IP, multimedia content and business-critical applications.
