Networking
| Multicast support |
Y |
| Number of VPN connections |
175000 |
| Number of VLANs |
50 |
| VPN tunnels quantity |
800 |
| Number of users |
300 user(s) |
| Quality of Service (QoS) support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Other features
| Authentication method |
SSO, LDAP |
| Compliance industry standards |
IEEE 802.11 a/b/g/n |
| Networking features |
Gigabit Ethernet |
| Interface |
10/100/1000 LAN |
| Special features |
3G USB Adapter Modem |
Performance
| Heat dissipation |
219 BTU/h |
Data transmission
| VPN throughput |
625 Mbit/s |
| Firewall throughput |
1536 Mbit/s |
Protocols
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Management protocols |
HTTP, HTTPS, SSH, SNMP v2 |
| Routing protocols |
OSPF |
Design
| Form factor |
1U |
| Rack mounting |
Y |

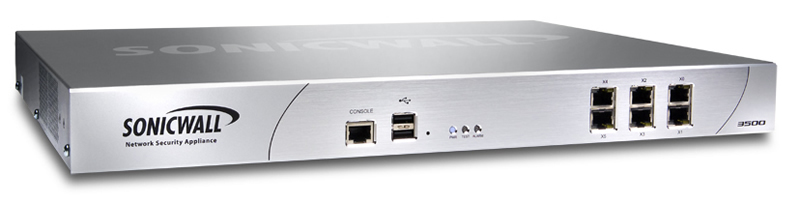

NSA 3500 Secure Upgrade Plus 2 Yrs, 1U, 1536 Mbit/s, 50 VLANs, Gigabit Ethernet, 802.11 a/b/g/n, 2x USB 2.0, 512MB RAM, SonicOS Enhanced
The SonicWALL NSA 3500 is a next-generation United Threat Management platform, utilizing a breakthrough multi-core hardware design with 4 cores and 6 GbE interfaces to deliver real-time internal and external network protection without compromising performance.
The NSA 3500 is well-suited for corporate, branch office and distributed environments requiring threat prevention, rapid deployment and lowered TCO. The NSA 3500 combines high-speed intrusion prevention, file and content inspection and powerful application firewall capabilities with an extensive array of advanced networking and configuration flexibility features in an accessible, affordable platform that is easy to deploy and manage in a wide variety of environments.
