Other features
| Authentication method |
SSO, LDAP |
| Interface |
10/100 LAN |
| Power supply type |
AC |
| Compliance industry standards |
IEEE 802.3, IEEE 802.11b/g/n |
| Networking features |
Fast Ethernet |
Performance
| Heat dissipation |
26 BTU/h |
| Antenna gain level (max) |
5 dBi |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Data transmission
| VPN throughput |
35 Mbit/s |
| Firewall throughput |
100 Mbit/s |
Networking
| Local user database |
25 |
| VPN tunnels quantity |
5 |
| Number of users |
6000 user(s) |
| DHCP server |
Y |
Protocols
| Management protocols |
CLI, HTTP, HTTPS, SNMP v2 |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |
| Transfer rate (Mbps) |
100 Mbit/s |

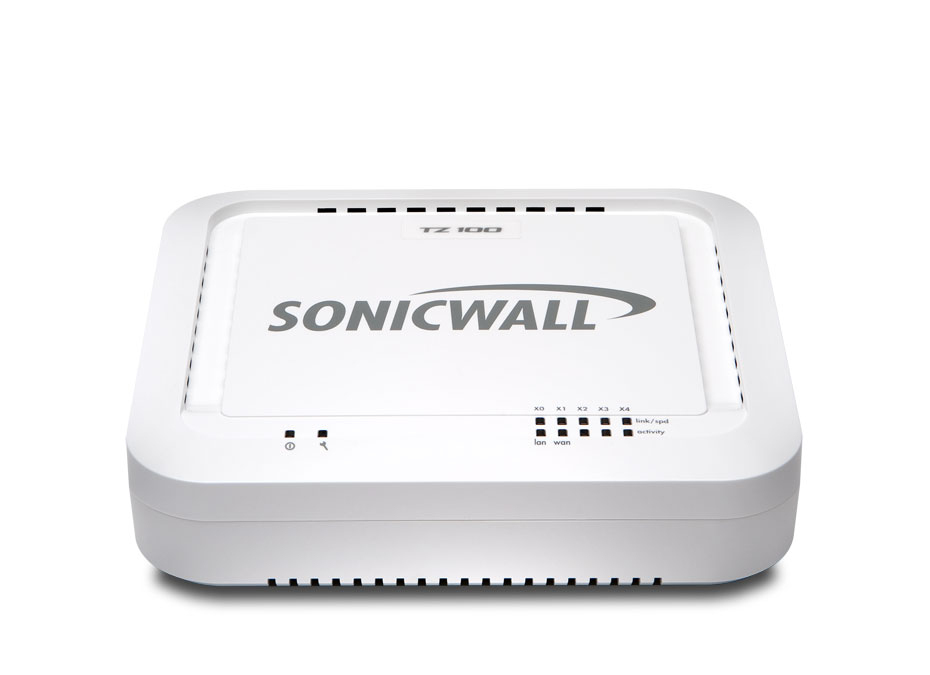

TZ 100 Total Secure 1Yr, 100 MB/s, Fast Ethernet, 128MB RAM, 26 BTU/h, DES/3DES/AES, 25 users
The new TZ 100 is the entry point of the SonicWALL TZ Series, making high performance Unified Threat Management available and at affordable prices for everyone. It features a powerful Stateful Packet Inspection Firewall plus an advanced Reassembly-Free Deep Packet Inspection™ engine capable of delivering SonicWALL’s newly expanded comprehensive protection. The TZ 100 completely revolutionizes SMB and distributed enterprise protection with the introduction of new enterprise-class Comprehensive Anti-Spam Service to complement the existing UTM protection lineup of Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, and advanced Content Filtering. The new TZ 100 Series supports powerful integrated SSL VPN remote access capabilities and includes five 10/100 interfaces. The TZ 100 performs two-and-a-half times faster* than the TZ 180 and TZ 150, easily expanding comprehensive protection without compromising network throughput. The TZ 100 Wireless-N version adds high-speed 802.11n.
