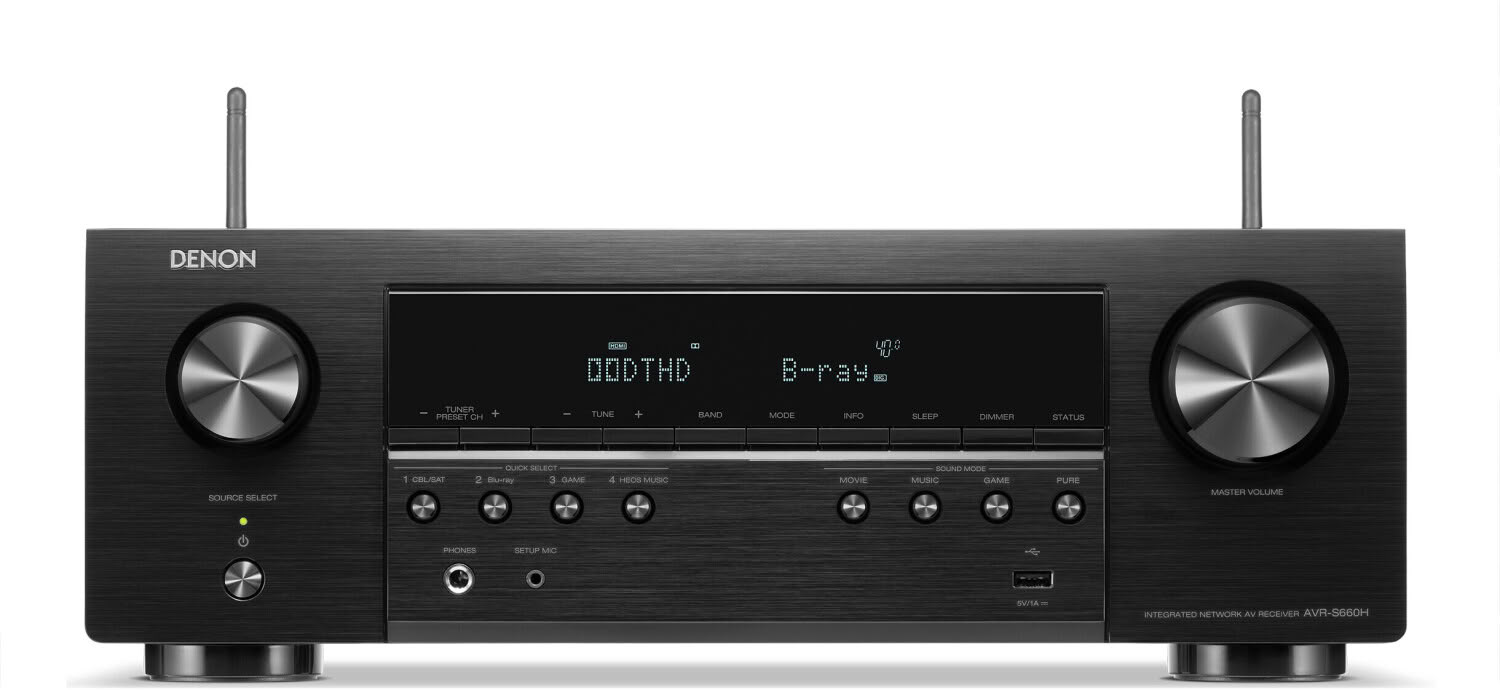

Denon AVR-S660H

Product types: AV Receiver, Network Receiver
Series: Denon AVR
Speaker configuration: 5.2
Power per channel: 135 Watt

Technical specifications
Output power: 5 x 130 Watt
Output impedance: 6 Ohm
HDMI functions: HDMI-CEC, HDMI Standby Through

Connections
analog audio inputs: 2x LINE In (RCA, Stereo), 1x MM Phono In (RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical)
HDMI ports: 1x HDMI-Out, 6x HDMI-In
Video connections: 1x Composite OUT, 2x Composite IN
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connections: HDMI Input, Headphone Output, 1x Measurement Microphone (Setup Mic), 1x USB 2.0 Type-A
Data connections: Network connection, USB
additional connection: Antenna connection

Audio
Audio functions: Compressed Audio Restorer, Audyssey Dynamic Volume, Audyssey Dynamic EQ
Dolby formats: Dolby TrueHD, Dolby ProLogic II, Dolby Surround
DTS Formats: DTS HD Master Audio, DTS Neo:6, DTS HD
Number of listening zones: 1

Video
Supported Resolutions: 8K
Video functions: Deep Color, x.v.Color, 4K Pass-Through, HLG (Hybrid Log Gamma), High Dynamic Range (HDR), HDCP 2.3, Dolby Vision
3D-Ready: yes

Connectivity
Network functions: Audio Streaming, App Control, Multiroom, Network Streaming
Wireless transmissions: AirPlay 2, AirPlay, HEOS, Bluetooth, WLAN
Streaming services: Deezer, Pandora, Spotify, Tidal, Amazon Music

Functions
Comfort features: Graphical User Interface (GUI), Installation Assistant
Environmental properties: Sleep timer, automatic shut-off, energy-saving mode
Calibration system: Audyssey MultEQ
Reception area: FM (Ultra High Frequency)
RDS: yes

Power supply
Power consumption in operation: 300 Watt
Power consumption standby: 0,1 Watt

additional features
Dimensions: 434 x 151 x 339 mm
Weight: 7,8 kg
Color: black
