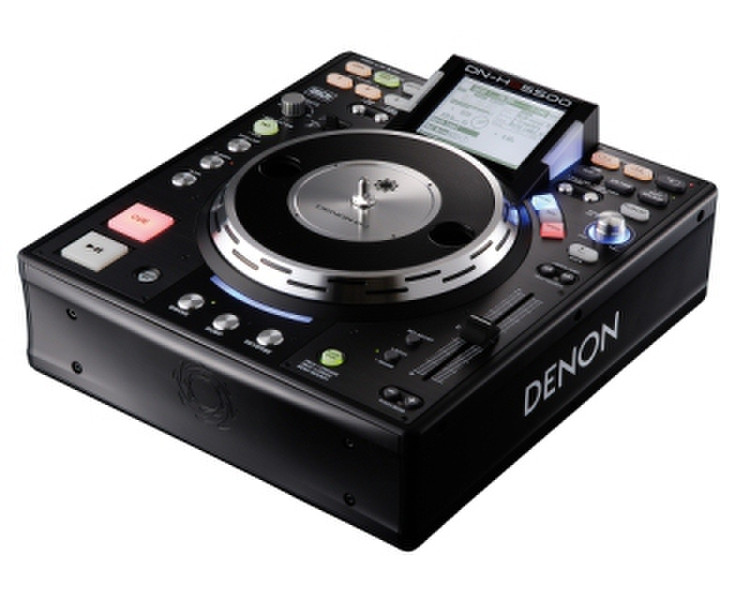

DN-HS5500 - Direct Drive Turntable Media Player and Controller
Manufacturer's Description for Denon DNHS5500 Direct Drive Turntable Media Player Controller
The DNHS5500 is like getting two decks in one. One of the most riveting features of the DNHS5500 is its independent Dual Deck-like operation with separate audio outputs. Deck 1 & Deck 2 can be operated simultaneously by a simple flip of a button, offering twice the power & creativity in a single deck. Each Deck layer has full access to all the available features as well as your connected devices & music library. Additionally, when used as a MIDI controller each Deck layer can fully control 2 players from your favorite DJ software such as, PCDJ/Reflex LE, Serato Scratch LIVE, Traktor...etc.
High Torque Direct Drive Motor & Spinning Platter Design
Denon’s proprietary 12-pole Direct Drive brushless motor design is keeping the art of the 110-year old turntable alive & true to its native feel, delivering instant full rotation speed with a powerful 2.5 kg/cm of start-up torque within 0.5 seconds for true turntable reaction and response. DJs can perform freely as if they were using a genuine analog turntable. Platter rotation can be changed from 33 to 45 R.P.M. for comfort.

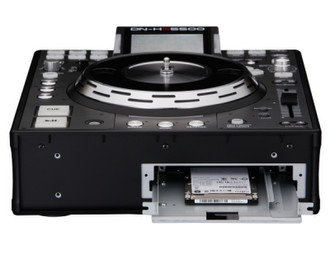

Modular HDD
By this powerful and unique design, the DJ is now in full control over their internal hardware preference by choosing your own 2.5" laptop size Hard Drive to store your Library as the secured "internal" source playback. The 2.5-inch HDD easily mounts to a removable caddy accessible from the front panel.
External USB Device Support
Got a portable music collection stored on external USB media no problem... the DNHS5500 can support multiple external USB mass storage class devices direct or via a USB 2.0 hub (sold separately). Connect your, iPod, Jump Drive, and large USB Hard Drives for easy access to your small or extensive mp3/wav libraries. Simply plug these devices into the DNHS5500 to obtain the powerful on-board features such as, Instant Start, Seamless Looping, Scratching and File Searching, just to name a few.
Supported File Formats: MP3 & WAV
MIDI Interface Controller (PC/MAC)
The DNHS5500 is more than just player, it’s also designed to interface & control a variety of popular DJ programs that supports USB MIDI in/out interface, either by user custom mapping or direct native support by the software vendor. Control your favorite DJ software or your hard disk full of music all from one clever player.
USB Audio Internal 24-Bit Processing
Most DJ MIDI controllers on the market today don’t include an internal sound card. The DNHS5500 encompasses its own USB Audio interface (sound card) which eliminates the hassle to source one and spend additional money. The internal power supply delivers optimum electrical specifications, resulting in best possible audio quality & performance, featuring industry leading Burr Brown (a product of TI) 24 bit DAC processing for superior output audio fidelity. USB Audio interface includes 2-Channel Stereo output pair, 44.1kHz sampling ranges and low latency ASIO / OSX Core Audio support
D-Sync
Two DNHS5500 players can be linked together by a single RJ45 cross-cable for MASTER / REMOTE operation. This EASY operation enables the DJ to make all their peripheral connections to a single player while having full control of your music devices from either side. The REMOTE Player has independent access to all connected devices including use of the keyboard function.
5 Superb Built-in DSP Effects
Building the mood of your dance floor and remixing live has never been so easy with our on-board effects. Easily activate and have full parameter adjustments with a unique Dry/Wet mix control of the effects: Flanger, Filter-(High-Mid-Low), Echo, Tail Echo and amazing Echo Loop.
3 Platter Effects
- Brake (adjustable in real-time)
- Dump (reverse sound without losing true forward time, like a radio edit)
- Reverse (plays your music backwards and platter spins backwards too)
Mirror Mix
The exclusive Mirror Mix feature is like having two copies of the same track while juggling the mixer’s crossfader back and forth with the other track being slightly delayed. Delays setting are adjustable from, 1/8, 1/4, 1/2, 1/1, 2/1
Large 3.8 in. Display
This easy to follow bright display provides a visual text feedback of modes and parameters making it very intuitive for first time users to navigate without having to read the manual. The display options include split screen for simultaneous dual deck monitoring or larger single deck wide display mode, LCD contrast, LCD illumination levels and inverse display image.
Pitch Range & Deep Pitch Resolution
For those DJ’s who perform long mix transitions and require high pitch resolution, the HS5500 offers .02% for the 4% pitch range and .05% for the 10/16% pitch range. 24%/50%/100% ranges are also available.
Keyboard & Intuitive File Navigation System
The DNHS5500 will support the 3-types of global USB keyboards (Qwerty, Qwertz, Azerty) in 9 different native languages for simplified song search of; Artist, Album, Title, Genre, Year, BPM, File Name, Hot List & Folder Structure.
In addition, shortcut keys are assigned to perform various functions and Latin-1 character searching is available.
Playlist Creation & Hot List
The powerful on-board Playlist function allows you to create, edit and save up to 3 different types of Playlist categories, Top 40, Favorite, & Your Own Custom list. Hot List stores your immediate requests or songs you intend to play throughout the course of your gig. Once the Hot List file is played a check-mark appears next to it.
File Transport Utility
You can now easily transport files to & from any connected device mounted to the player. This powerful function makes it easy to transport registered files, say from your USB thumb drive to another Hard Drive when connected, and updates your libraries all at the same too.
