Networking
| Maximum operating distance |
300 m |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Modulation |
64-QAM, 256-QAM, OFDM, BPSK, 1024-QAM, QPSK |
| Frequency band |
2.4 GHz |
| Spread spectrum method |
DSSS |
Wireless LAN features
| Wi-Fi |
Y |
| Maximum indoor range |
300 m |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Other features
| Power LED |
Y |
| Wireless technology |
Wi-Fi |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Link/Act LED |
Y |
Ports & interfaces
| Host interface |
PowerPlug |
| Internal |
N |
Power
| Input voltage |
230 V |
| Input current |
0.13 A |
| Input frequency |
50 Hz |
Performance
| Mac operating systems supported |
Y |
Additionally
| Transfer rate (Mbps) |
200 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Ethernet LAN connection |
Y |

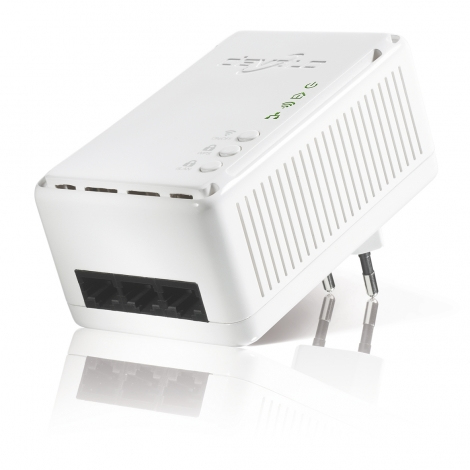

dLAN 200 AV Wireless N, WLAN 802.11 b/g/n (2.4 GHz), 200 Mbps, 5.6W, 200g
<b>One for all! Powerline adapter with integrated WLAN access point and three LAN ports</b>
- Easy set-up of WLAN zones (WLAN access points) in the dLAN® home network with support of the WLAN "802.11n" high-speed standard.
- No more problems with thick walls: at last, wireless LAN in every room and on every floor of your house
- 200 Mbps (gross) connection for fast data transmission, 300 Mbps (gross) in WLAN operation ("802.11n" standard).
- Three integrated network ports (RJ45) for cabled connections of computers and network-compatible devices (e.g. PlayStation, television and Blu-ray player)
Game consoles, Internet TV sets, Blu-ray players, laptops and smartphones – more and more devices can be connected to the Internet. Whether using WLAN or a classic network cable – the dLAN® 200 AV Wireless N is the solution. Using the compact devolo adapter, you can easily set up individual WLAN zones in the home and also connect up to three cable-based devices in the room to the Internet using just one dLAN® adapter. Ideal for the living room and home office!
