Networking
| Maximum operating distance |
300 m |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Modulation |
64-QAM, 256-QAM, OFDM, BPSK, DSSS, 1024-QAM, QPSK |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
Ports & interfaces
| Host interface |
PowerPlug |
| Internal |
N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi |
Y |
| Maximum outdoor range |
300 m |
| Maximum indoor range |
300 m |
Other features
| Ports quantity |
3 |
| Power LED |
Y |
| Networking features |
Ethernet, Fast Ethernet |
| Wireless technology |
IEEE 802.11b/g/n |
| Link/Act LED |
Y |
Power
| Input voltage |
230 V |
| Input current |
0.13 A |
| Input frequency |
50 Hz |
Performance
| Mac operating systems supported |
Y |
Protocols
| Supported network protocols |
DHCP (Client), APIPA, devolo Auto IP, ARP, ICMP, TCP/IP, UDP (IP) |
| Media access protocol |
CSMA/CA, EDCA, CSMA/CD |
Bandwidth
| Supported data transfer rates |
10/100Mbit/s |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Wireless connections |
Y |
| Transfer rate (Mbps) |
300 Mbit/s |

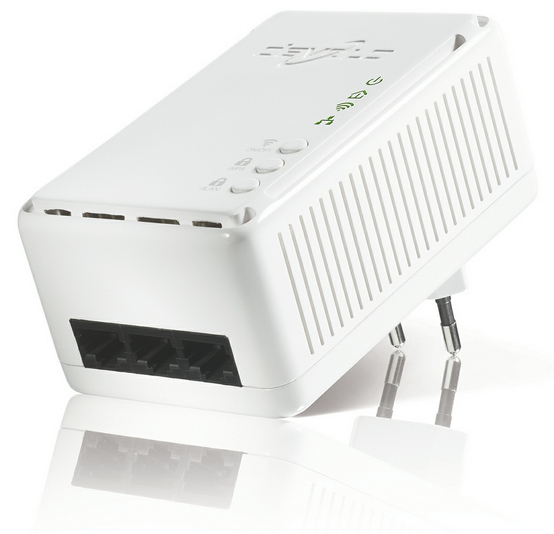

Powerline adapter @ integrated WLAN access point & three LAN ports, IEEE 802.11b,g,n (2.4GHz Single Band)
<b>One for all! Powerline adapter with integrated WLAN access point and three LAN ports</b>
- Easy set-up of WLAN zones (WLAN access points) in the dLAN® home network with support of the WLAN "802.11n" high-speed standard.
- No more problems with thick walls: at last, wireless LAN in every room and on every floor of your house.
- 200Mbps (gross) connection for fast data transmission, 300 Mbps (gross) in WLAN operation ("802.11n" standard).
- Three integrated network ports (RJ45) for cabled connections of computers and network-compatible devices (e.g. PlayStation, television and Blu-ray player).
<b>Product description</b>
Game consoles, Internet TV sets, Blu-ray players, laptops and smartphones – more and more devices can be connected to the Internet. Whether using WLAN or a classic network cable – the dLAN 200 AV Wireless N is the solution. Using the compact devolo adapter, you can easily set up individual WLAN zones in the home and also connect up to three cable-based devices in the room to the Internet using just one dLAN adapter. Ideal for the living room and home office!
- Powerline adapter for extending the Internet connection to every room of the house via the powerline. Whether via WLAN or using a classic network cable, all devices in the room have an optimum connection.
- Easy set-up of WLAN zones (WLAN access points) in the dLAN home network with support of the WLAN "802.11n" high-speed standard.
- No more problems with thick walls: at last, wireless LAN in every room and on every floor of your house
- 200 Mbps (gross) connection for fast data transmission, 300 Mbps (gross) in WLAN operation ("802.11n" standard).
- Three integrated network ports (RJ45) for cabled connections of computers and network-compatible devices (e.g. PlayStation, television and Blu-ray player).
- dLAN works in every room desired, in every apartment, in every building – whether new or old, up to a cable length of 300 metres.
- Compact socket adapter with two integrated antennas for versatile and unobtrusive positioning.
- Integrated encryption for WLAN (WPS) and dLAN at the touch of a button.
- Separate on/off switch for WLAN operation. If WLAN is not needed, it can be switched off easily.
- 4-LED status display for information about operating state and WLAN and dLAN connectivity.
- Greater security with integrated timer: the operating times of the WLAN can be configured individually using the software.
