Protocols
| Supported network protocols |
CSMA/CA |
Other features
| Link/Act LED |
Y |
| Power LED |
Y |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u |
Bandwidth
| Supported data transfer rates |
10/100 Mbit/s |
Networking
| Modulation |
256-QAM, OFDM, BPSK, 1024-QAM, QPSK, 64-QAM |
| Maximum operating distance |
300 m |
Power
| Input voltage |
230 V |
| Input current |
16 A |
| Input frequency |
50/60 Hz |
Performance
| Mac operating systems supported |
Y |
Ports & interfaces
| Host interface |
PowerPlug |
| Internal |
N |
Additionally
| Ethernet LAN connection |
Y |
| Transfer rate (Mbps) |
200 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |

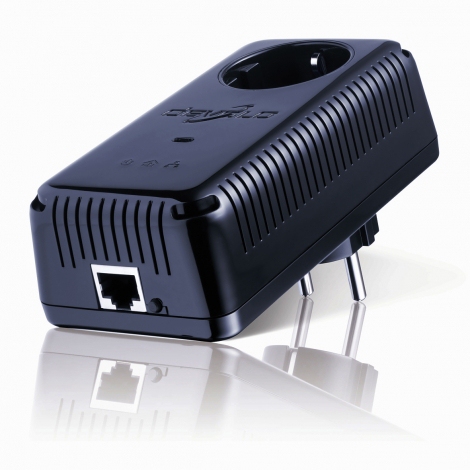

dLAN 200 AVpro WP II, 200Mb/s, Fast Ethernet, PowerPlug, RJ-45, MDI/MDIX, QoS, OFDM, AES, 230V/16A, 4.0W, 300m, 230g, Kensington, Black
<b>dLAN® 200 AVpro WP II</b>
High performance & security in the mains supply network thanks to integrated filter technology & Kensington Lock connection.
- Remote management;
- Connection for Kensington Lock;
- Data transmission via the electrical wiring;
- Integrated mains filter.
Devolo offers the dLAN® 200 AVpro WP II specifically for commercial networking solutions via the existing power line. Based on the HomePlug AV standard, data, voice and video are transmitted over the power line at rates up to 200 Mbps. There is no need for investments in new cables for data transmission.
In addition, the devolo adapter has an integrated socket for connecting terminals or a power strip as well as a filter for optimising the transmission capacity. The dLAN® 200 AVpro WP II is the first powerline adapter to offer anti-theft protection in the form of a Kensington Lock connection. By connecting a standardised Kensington Lock, the device can be protected from theft easily and efficiently.
<b>Benefits:</b>
- HomePlug AV adapter with transfer rates of up to 200 Mbps – ideally suited to broadband multimedia applications such as IPTV, Video on Demand and bandwidth-intensive Internet applications;
- Integrated socket for connecting power strips and terminal devices;
- Integrated mains filter for reducing interference on the powerline network;
- Remote management via dLAN® 200 AVpro manager management software;
- Quality Indicator LED for determining broadband status;
- Integrated Quality-of-Service function (QoS) with automatic data prioritisation;
- PowerSave mode can be disabled by software;
- 1 Ethernet port Auto MDI/X;
- Dynamic neighbouring voltage;
- Mechanical antitheft protection by means of connection for Kensington Lock;
- Master/slave or peer-to-peer architecture;
- Scalable upgrades by deploying up to 63 slaves per master;
- Range: 300 m (656') over mains wiring;
- Secure data encryption at the touch of a button or centralised administration (encryption button can be enabled/disabled by software);
- Comprehensive configuration options (notching, output power etc.).
