Networking
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Maximum operating distance |
600 m |
| Modulation |
64-QAM, 256-QAM, OFDM, BPSK, 4096-QAM, 1024-QAM, QPSK |
Other features
| Power LED |
Y |
| Link/Act LED |
Y |
| Other network protocols supported |
CSMA/CA |
Power
| Input frequency |
50/60 Hz |
| USB powered |
N |
Bandwidth
| Supported data transfer rates |
10,100, 1000Mbps |
Ports & interfaces
| Host interface |
PowerPlug |
| Internal |
N |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
| Transfer rate (Mbps) |
1000 Mbit/s |
Ethernet 10/100/1000Mbps, Powerline 200/500Mbps, Type G Socket, 3 x Ethernet RJ-45, 1 x Ethernet RJ-45/PoE, 1 x Phone RJ-11, 1 x Coax, 128 Bit AES, 1040g

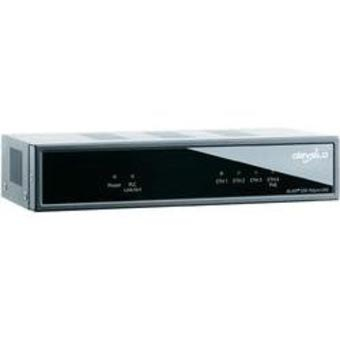

The dLAN 500 AVpro UNI is the first professional dLAN universal adapter. dLAN connections can be made using this device via the power line, via coaxial networks, or via two-wire lines. dLAN 500 provides for a secure and stable communication with high transfer rates. An integrated 4-port gigabit Ethernet switch in the compact housing enables a high connectivity at the installation location. Thanks to PoE support at one port, corresponding terminal devices can also be connected and provided with current. Professional remote management is also possible via the dLAN AVpro manager software.
- dLAN made universal: Reliable IP data communication via power, coaxial and two-wire lines
- No large-scale construction efforts: Existing wiring, such as conventional network cables, are used
- Integrated 4-port gigabit switch: Connection of four network-compatible devices (PC, router or IP camera)
- Ethernet port with PoE support: Power supply from a network-compatible device, for example, an IP telephone
- Professional remote management from a distance: Manage all dLAN devices professionally
