Packaging content
| Manual |
Y |
| Quantity per pack |
1 pc(s) |
System requirements
| Linux operating systems supported |
Ubuntu 12.04 |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Performance
| WLAN data transfer rates supported |
300 Mbit/s |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Ethernet LAN interface type |
Fast Ethernet |
| Built-in power socket |
N |
| Security algorithms |
128-bit AES, WPA, WPA2, WPS-PBC, WPS-PIN |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum operating distance |
400 m |
| Modulation |
64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK |
| Power plug |
Type E / F |
Power
| Power consumption (typical) |
4.4 W |
| Power consumption (standby) |
1 W |
| AC input voltage |
196-250 V |
| AC input frequency |
50 Hz |
Design
| Antenna type |
Internal |
| LED indicators |
Power, WLAN |
Weight & dimensions
| Depth |
40 mm |
| Width |
68 mm |
| Height |
68 mm |
| Package depth |
91 mm |
| Package weight |
300 g |
| Package width |
115 mm |
| Package height |
190 mm |
Operational conditions
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
1200 Mbit/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |
Fast Ethernet, CSMA/CA, 802.11b/g/n, Auto MDI/X, Powerline: 400, 1x RJ-45, Bianca

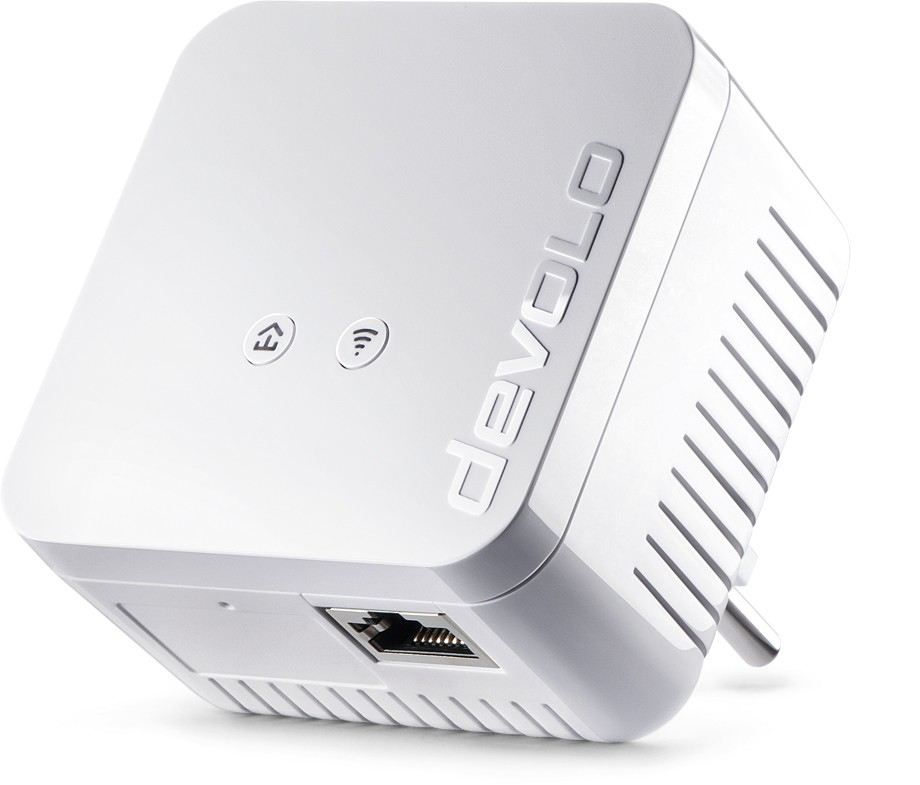

dLAN® 550 WiFi
Now you can finally have fun surfing via Wi-Fi throughout your home! dLAN® 550 WiFi with range+ Technology provides fast, high-performance Internet connections with significantly longer ranges. As a dLAN® adapter, dLAN® 550 WiFi uses your household electrical wiring as a long cable and brings the Internet to any room. Thanks to the intelligent WiFi Move Technology, all terminal devices are also automatically connected to the network—top-performance Wi-Fi reception for smartphones, tablets etc. in all rooms and on every floor! Along with its compact and unobtrusive design, dLAN® 550 WiFi provides a LAN port for one additional terminal device (such as a smart TV). Experience boundless Internet freedom—with dLAN® 550 WiFi from devolo.
Benefits at a glance
- dLAN® 550 WiFi brings the Internet to any corner of your home over the electrical wiring—no stuttering, no dropouts!
- Top-performance Wi-Fi reception for smartphones, tablets, etc. at speeds up to 300 Mbps.
- Powerline connection over the electrical wiring at speeds up to 500 Mbps.
- For the first time, devolo range+ Technology is taking advantage of all three wires in the electrical circuit for even greater performance and extended range.
- The additional LAN port lets you connect another Internet-compatible device (e.g. game console or smart TV) to the Internet at any time using a network cable.
- Compact design for convenient placement throughout the home, at any power socket.
- WiFi Move Technology can automatically connect multiple Wi-Fi adapters to a single Wi-Fi network. Optimal Wi-Fi reception throughout your home—entirely automated.
- The intuitive my devolo app helps you perfectly manage your personal home network to meet all your needs (e.g. parental controls, guest accounts, Wi-Fi time control).
- Rely on number 1: More than 25 million devolo dLAN® adapters have been sold worldwide.
- 3-year warranty.
