Performance
| Built-in power socket |
Y |
| Filter characteristics |
-22 - -45 dB |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Modulation |
64-QAM, 256-QAM, BPSK, 4096-QAM, 1024-QAM, QPSK |
| Power plug |
Type F |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
| Wi-Fi |
N |
| Maximum operating distance |
400 m |
System requirements
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Additionally
| Transfer rate (Mbps) |
1200 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
Gigabit Ethernet, CSMA/CA, 802.3u/ab/x/az, 802.1p, Auto MDI/X, Powerline: 400, 1x RJ-45, Nero

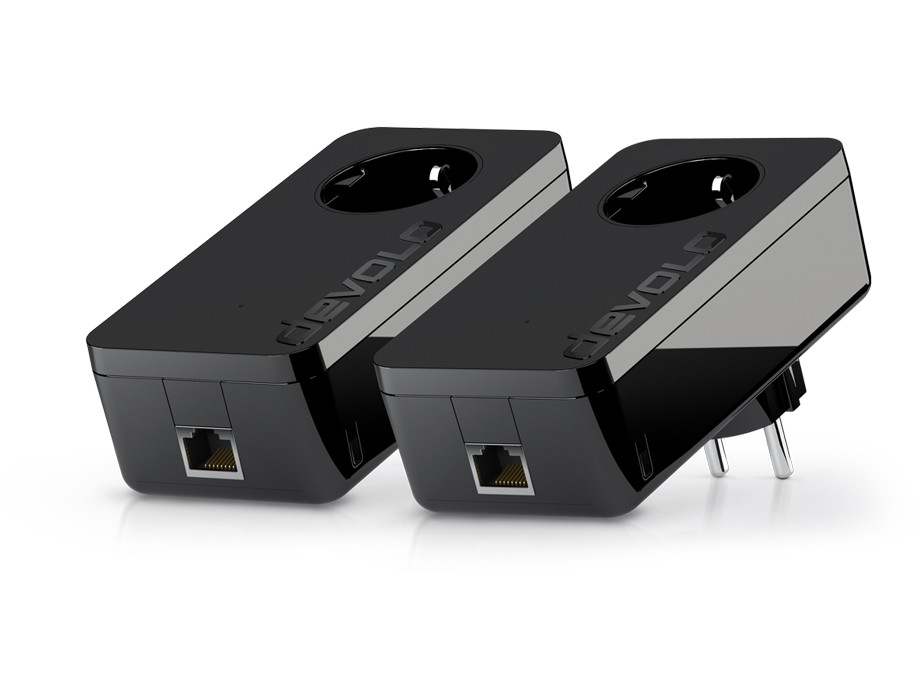

<b>dLAN® pro 1200+</b>
High bandwidths of up to 1,200 Mbps, stable transfer rates up to 400 metres and sophisticated network management software make the devolo dLAN® pro 1200+ the perfect alternative for companies that cannot or do not want to route network cables. With the dLAN® pro 1200+, devolo ensures flexible network retrofitting over the electrical wiring. The fast and easy installation in conjunction with the dLAN® AVpro manager enables efficient integration into professional networks. During this process, the dLAN® pro 1200+ provides a maximum transmission rate of 1,200 Mbps at a range of 400 metres. range+ Technology is one aspect that makes this possible. It allows all three lines in the electric mains circuit to be used for data transmission.
<b>Benefits at a glance</b>
- 1x Gigabit LAN port with Auto MDI-X function for connecting any number of network devices via patch cables
- range+ Technology from devolo: significantly better transmission thanks to optimised and patented signal coupling on the power line
- In addition to the phase and neutral wires, it also uses the earth wire for the best possible data rates and range
- Ensures a more stable Internet connection with much longer ranges
- Global remote access allows secure, web-based monitoring and configuration of all parameters remotely
- Status monitoring of the connected devices via integrated live view (transfer rates, data packets)
- Configuration of entire device groups via profiles in the dLAN® AVpro Manager
- Real-time monitoring of all dLAN® Professional network adapters
- Intuitive administration interface with beginner and expert mode
- Thanks to the integrated electrical socket, the power outlet (230 V / 16 A) remains available
- A special mains filter attenuates the interference signals, ensuring an optimal and interference-free data transmission.
- Long range of up to 400 metres in buildings
- Security: 128-bit data encryption (AES)
- Short installation times and cost-efficient integration (without routing cables or drilling through walls)
- Professional network management software (dLAN® AVpro manager) for supporting the administrator during configuration and monitoring
- Supports flexible network architectures such as peer-to peer or master-slave networks (multi-dwelling units)
- Business hotline and immediate replacement of defective products
- Engineered in Germany
- 3-year warranty
