Certificates
Safety |
UL 60950, CSA 22.2 No. 60950, EN60950; Class 1 Div 2 |
Protocols
Supported network protocols |
UDP/TCP, DHCP, SNMPv1/v2 |
Management protocols |
SNMPv1/v2, HTTP/HTTPS |
Memory
Flash memory |
16 MB |
Internal memory |
32 MB |
Networking
Networking features |
802.11bg |
Additionally
Wireless connections |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

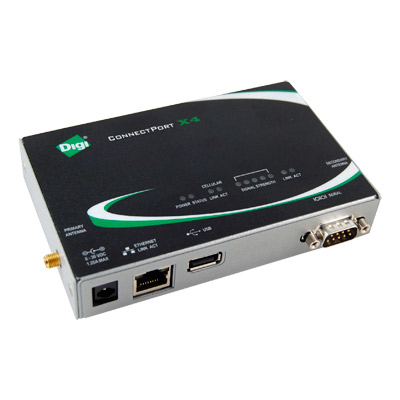

ConnectPort X4 - XBee to Wi-Fi 802.11g, ZNet 2.5, Serial, 10.4 W, 200 g
- WAN connectivity via high-speed cellular interfaces: 2G/3G/Gobi GSM, EDGE, HSPA/HSPA+, and CDMA- 1xRTT, EV-DO
- Small metal enclosure or NEMA 4X/IP66 case for commercial or industrial environments
- Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption, and support for Modbus/Modbus TCP
- Easy development environment via DIA and Python scripting as part of Digi ESP
- Manage your ConnectPort X4/X4 H with Device Cloud
ConnectPort X4 customizable 2G/3G/Gobi cellular M2M routing gateways offer a variety of LAN/WAN interface options for end-to-end networking of remote devices. The wireless gateways include comprehensive IP protocols and IPSec VPN support for high-end routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server.Device Cloud
ConnectPort X4 gateways benefit from the enhanced management capabilities offered by Device Cloud by Etherios™. This web-based device management system enables remote access and control of your Digi cellular routers and gateways.
The Device Cloud platform as a service provides integration of web and mobile applications via Device Cloud application programming interfaces (APIs), while providing the required reliability and security infrastructure to elastically scale.
ConnectPort X4 gateways feature a compact commercial-grade enclosure or an optional outdoors IP66/NEMA 4X enclosure with Class 1, Division 2 rating for more rugged applications. Interface options include Ethernet, serial and XBee RF for flexible connectivity to virtually any remote device.
All ConnectPort X gateways feature an end-to-end development environment using comprehensive Digi ESP™ IDE and DIA/Python programming languages.
