Technical details
| Serial ports quantity |
1 |
| Surge protection |
2 kV |
| Serial interface type |
RS-232, RS-422, RS-485 |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Management protocols |
HTTP |
Design
| Safety |
UL 60950, EN60950, CAN/CSA C22.2 No.60950 |
Protocols
| Supported network protocols |
TCP/UDP, UDP Multicast, Telnet, Reverse Telnet, RFC2217, DHCP/RARP/ARP-Ping |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

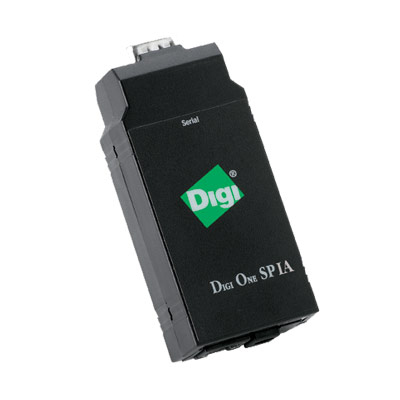

One SP IA - RS-232/422/485, 10/100Base-T, 65g, Black
Digi One SP IA is a high-performance serial server providing entry level serial-to-Ethernet connectivity for virtually any serial device. It features a 9-30VDC power input with bare-wire “pigtail” for a direct connection, includes a DIN rail and wall mount kit and is one of the smallest solutions available, making it ideal for industrial applications. Digi One SP IA provides a reliable interface to OPC servers or to other IA equipment such as bar-code readers, scales or temperature sensors.
Digi One SP IA supports most IA protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi’s patented RealPort® software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet as if they were communicating over a serial cable. Additionally, Digi One SP IA features modem emulation, allowing equipment designed for modem access to communicate transparently across the Ethernet.
Digi One SP IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects all Digi One devices on the network. Users can auto-connect a serial device to a networked server using raw, Telnet or rlogin. Advanced functions can be configured into an application using the web interface.
