Ethernet LAN features
| Full duplex |
Y |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Serial interface
| Electrostatic Discharge (ESD) protection |
15 kV |
| Serial ports quantity |
1 |
Technical details
| Isolation |
1.5 kV |
| Data network |
HSPA+ |
Cellular interface
| GSM bands supported |
1800, 1900, 900, 850 MHz |
| Number of SIM cards |
2 |
Networking
| Supported network protocols |
HTTP, HTTPS, FTP, SFTP, SSL, SMTP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS |
Certificates
| Safety |
UL 60950, CSA 22.2 No. 60950, EN60950 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
10/100 Mbit/s, Full or Half duplex, Auto MDI/MDIX, RJ-45, USB 2.0, 9 – 36 VDC
<b>All-in-one cellular router with advanced routing/VPN features,
designed specifically for use in rugged environments</b>

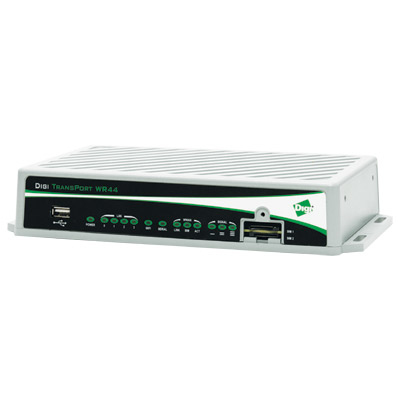

The Digi TransPort WR44 R is a rugged, all-in-one 3G/4G
mobile communications solution with true enterprise class
routing, security and firewall. Featuring a heavy-duty cast
aluminum enclosure, it offers a flexible interface design with
an optional integrated Wi-Fi access point (with multi SSID),
USB, serial and 4-port Ethernet switch, as well as a variety of
configuration options including GPS and CAN support.
These routers are ideal for transportation and mobile
applications. Flexible power options include 9-36 VDC
locking barrel or automotive Molex connectors for direct
integration into vehicle applications. Also ideal for mobile
applications is the cellular to Wi-Fi autoswitch feature, which uses the highest speed/lowest cost WAN network available.
All Digi TransPort products offer an advanced routing,
security and firewall feature set including stateful inspection
firewall and integrated VPN. Enterprise class protocols
incorporate BGP, OSPF and VRRP+. Advanced features
allow the Digi TransPort to be used as a component of a PCI
compliant network.
Digi’s remote management solutions feature easy setup,
configuration and maintenance of large installations of
Digi TransPort devices.
Rugged, enterprise-class cellular routers with advanced
dynamic routing, security and firewall features
– Heavy-duty cast aluminum enclosure for reliable
performance in rugged environments
– Integrated 802.11 b/g/n; a/n Wi-Fi access point (optional)
and 4-port Ethernet switch
– Flexible interfaces including GPS and CAN with
DC power options
– Cellular to Wi-Fi autoswitch feature automatically
uses the highest speed/lowest cost WAN network available
– Digi’s remote management solutions include software
for easy setup, configuration and maintenance
