Networking
| Supports ISDN connection |
N |
| Management protocols |
TR069 |
Security
| Authentication method |
DoS |
| VPN support |
VPN pass-through |
| Filtering |
Y |
Other features
| Maximum data transfer rate |
0.054 Gbit/s |
| xDSL connection |
Y |
| Networking features |
Wireless LAN, Wireless WAN |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
Additionally
| Ethernet LAN connection |
Y |

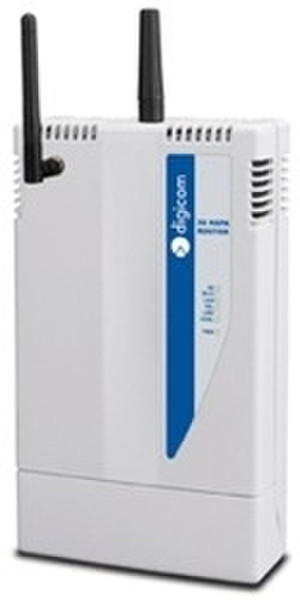

3G WLL - WAN, LAN, UMTS, HSDPA, HSUPA
3G WLL is a latest generation HSPA Gateway totally integrated, with Data and Voice functions.
It is equipped with a 3G module that integrates the maximum performances of the mobile UMTS network.
In particular, thanks to the HSDPA and HSUPA technologies the download speed can reach the 7.2 Mbps, while the upload speed is up to 2 Mbps.
This Gateway is mainly used in applications with Telecom Operators connected to PABX gateway. It is also ideal in all those applications that require high performances in transmission with the presence of an FxS voice interface.
3GWLL can be successfully used also in last mile applications where no telephone line is available or where it is not convenient to take it.
At the same time it is possible to supply high speed data service, similar to ADSL, even where it is not possible to have this type of connection, overcoming the problem of digital divide.
Another application of 3G WLL is with modern PABXs; it joins the functions of voice gateway for a phone cost saving toward the mobile network to the backup unit function for the ADSL connectivity.
Often in the most advanced PABXs also the Internet connectivity is required to take advantage of all the VoIP functions and systems Messaging.
The Gateway and Router functionalities integrated in one device with the reduction of the total costs.
3G WLL is equipped with a 54Mbps Wireless LAN interface to use computer and wireless devices that are at present an integral part of the professional and domestic activity.
3G WLL can be setup and managed via WEB interface, apart from the used operating system.
Furthermore it is supported the management of TR-069 protocol for applications with mobile Telecom Operators.
A built-in battery is supplied with the product to guarantee the voice operation even if electrical power falls down, so as for the fixed line.
3G WLL can be local and remote upgraded to be always abreast of technological evolution.
