Mobile networking
| 2G standards |
GPRS, EDGE, GSM |
| 3G standards |
UMTS, HSPA+ |
| 4G |
Y |
| 3G |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Other features
| USB ports quantity |
1 |
| USB version |
2.0 |
| Mobile network connection |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
WAN connection
| SIM card slot |
Y |
| Ethernet WAN |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
GSM/GPRS/EDGE/UMTS/HSPA+/FDD LTE, LAN, USB 2.0, Double SIM, 300g, Black

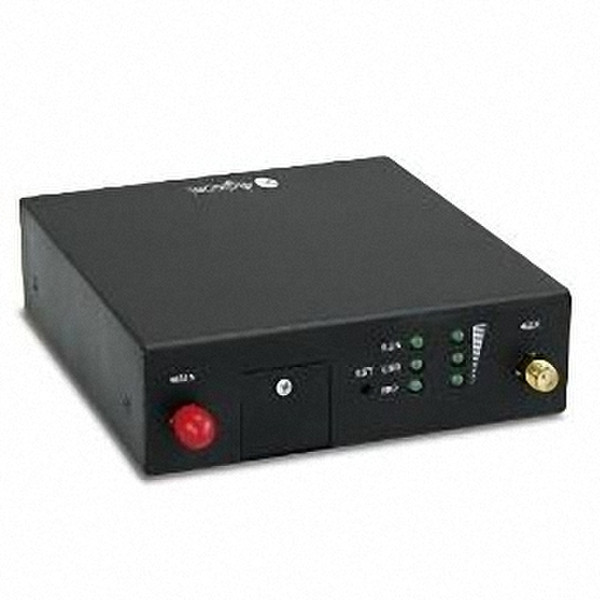

<b>3G Router with VPN</b>
3G Industrial Router VPN PRO is a compact size router with integrated HSUPA 3G module, especially projected for industrial applications in the M2M market.
The HSPA 3G module reaches a download speed up to 14.4 Mbps (HSDPA+) and an upload up to 5.76 Mbps (HSUPA).
All the functionalities and the components have been optimized for a wide use, from the extended temperature range (from -10 to + 60°C) to the power supply (from 6 to 26 VDC) and up to the management of consumption to satisfy the various installation needs in the professional and industrial sector.
The UMTS/GSM antenna is removable on SMA connector so that even different antennas (gain or external) can be used. Furthermore another antenna connector (AUX) allows the activation of the diversity function in case of mobile applications.

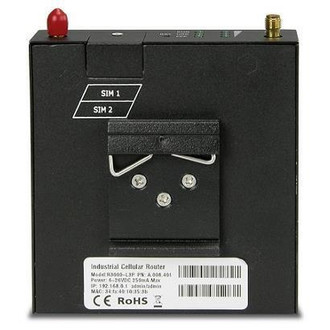

The metal case, the front connectors and the protected SIM holder have been designed to guarantee the maximum flexibility and functionality of a professional and industrial product.
Besides the standard functions like NAT, DHCP server and DynDNS, 3G Industrial Router VPN PRO is a professional router that supports advanced services: firewall, VPN, VRRP, remote connection and OpenVPN.
It is equipped with the RS485 or RS232 serial port for the connection of PLC with Modbus protocol to server
