Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| System event log |
Y |
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| VPN support |
IPsec, PPTP, L2TP |
| Firewall security |
SPI, NAT |
Mobile networking
| 3G |
Y |
| 2G standards |
GPRS, EDGE |
| 3G standards |
UMTS, HSUPA |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
Static IP, PPPoE, DoS, DynDNS |
| DMZ support |
Y |
Management features
| Reset button |
Y |
| Web-based management |
Y |
| Universal Plug and Play (UPnP) |
Y |
Networking
| Management protocols |
SNMP |
Other features
| Mobile network connection |
Y |
| xDSL connection |
N |
| Rack mounting |
N |
Antenna
| Antenna type |
Internal & external |
| Detachable antenna(s) |
Y |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Additionally
| Filtering |
IP |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
3G, 802.11 b/g/n, Fast Ethernet, DHCP, SPI, WPS, White
<b>HSPA 3G Ethernet Router</b>

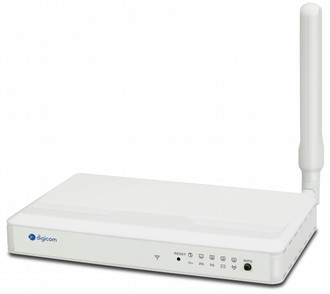

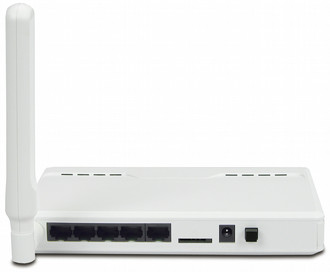

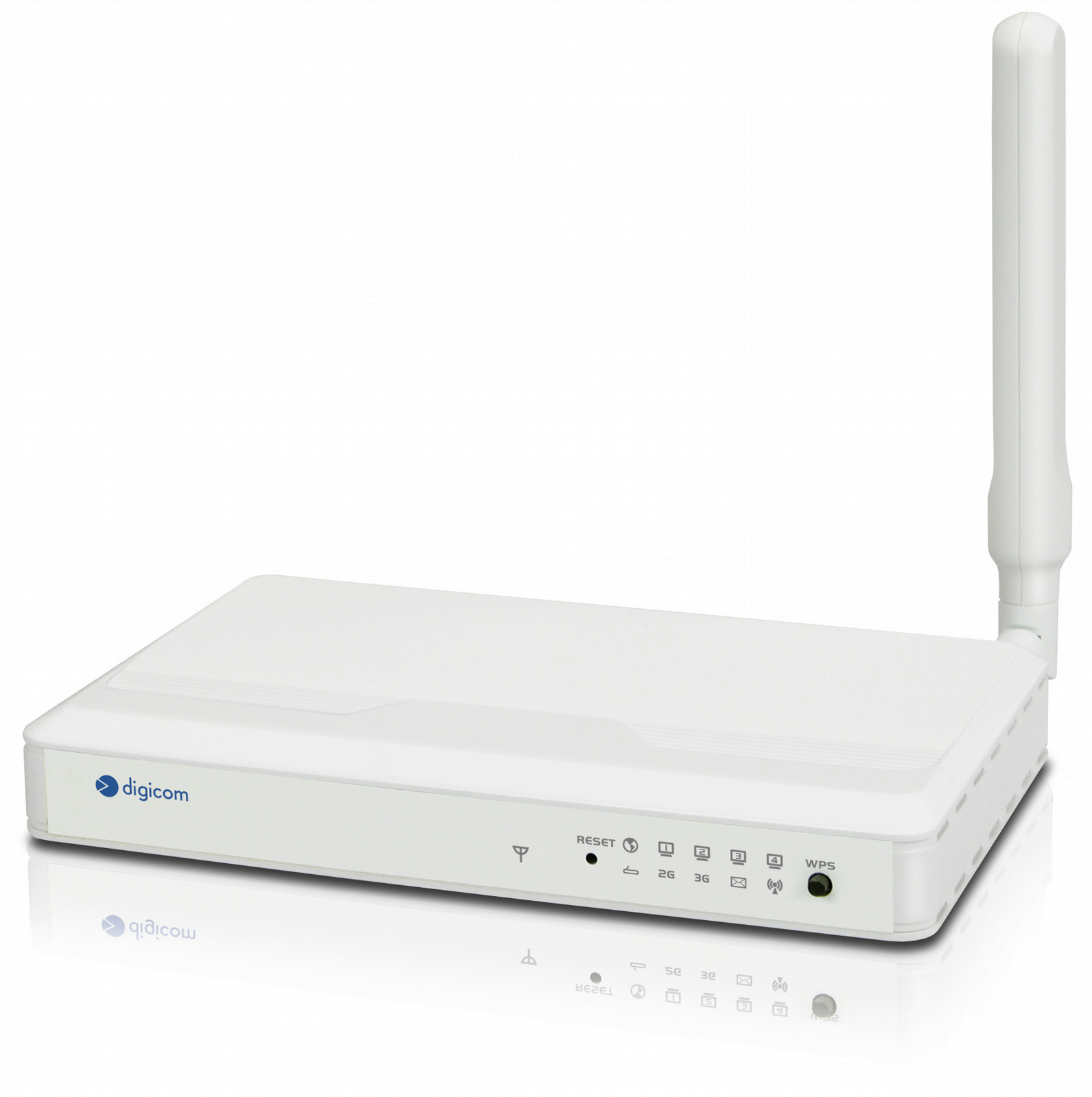

3G Router AM11 offers a Wireless WAN connection through the built-in 3G HSUPA module besides the traditional WAN Ethernet interface.
The 3G UMTS network is often the only possibility of wideband connection and it is with no doubt the fastest and the most versatile solution.
The 3G HSPA module reaches a download speed up to 7.2 Mbps (HSDPA) and an upload speed up to 5.76 Mbps (HSUPA) then, 3G Router AM11 can be used in apllications that require advanced performances up till now possible with ADSL and xDSL connections only.

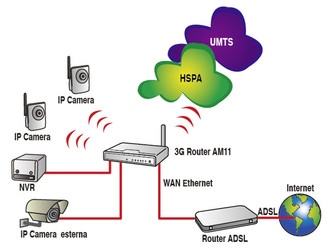

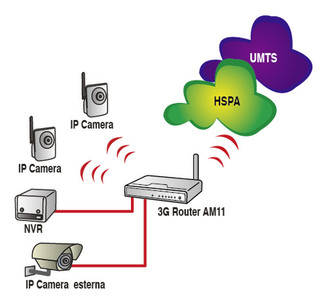

3G Router AM11 can operate in different modes according to the user's needs. It can supply connections over the 3G network only or through the WAN Ethernet port by interfacing an xDSL modem or by connecting to antennas of wireless operators (Wi-Fi, Hyperlan, WiMax).
The Backup functionality (AutoFailover) guarantees the continuity of the service as it can automatically switch to 3G connectivity in case the one on the WAN Ethernet port is not available. 3G Router AM11 connects and browses the Internet thanks to a 4 ports switch and the 300Mbps 11n wireless section. The built-in Firewall and the encryption systems of the wireless interface allow you to define the right protection for your network. Through the NAT, Virtual Server and DynDNS you will be able to remote access to devices or services on the local network. For example from a remote site you can display the images of one or more IPCameras installed in your network.
3G Router AM11 can be fully setup and managed via WEB interface, apart from the used operating system.
The management and the configuration can be performed both locally and remotely.
