Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Auto MDI/MDI-X |
Y |
Ethernet LAN data rates |
10, 100 Mbit/s |
Ethernet LAN interface type |
Fast Ethernet |
Security
VPN support |
PPTP, L2TP, IPSEC |
Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS |
MAC address filtering |
Y |
Networking
Routing protocols |
RIP-1, RIP-2 |
Management protocols |
SNMP, UPnP |
Software
Linux operating systems supported |
Y |
Mac operating systems supported |
Y |
Management features
Universal Plug and Play (UPnP) |
Y |
Quality of Service (QoS) support |
Y |
Reset button |
Y |
Web-based management |
Y |
Protocols
DMZ support |
Y |
DHCP server |
Y |
Supported network protocols |
PPPoA, PPPoE, RFC1483, IPoA, IPoE |
Wireless LAN features
Wi-Fi band |
Single-band (2.4 GHz) |
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
300 Mbit/s |
WLAN data transfer rate (first band) |
300 Mbit/s |
Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Design
LED indicators |
ADSL, LAN, Power, WLAN |
WAN connection
Ethernet WAN |
Y |
DSL WAN |
Y |
SIM card slot |
N |
Antenna
Antenna type |
External |
Antennas quantity |
2 |
Ports & interfaces
USB port |
Y |
RJ-11 ports quantity |
1 |
DC-in jack |
Y |
Additionally
Ethernet LAN connection |
Y |
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
4 |

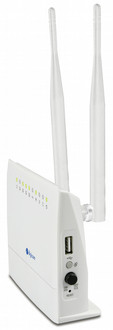

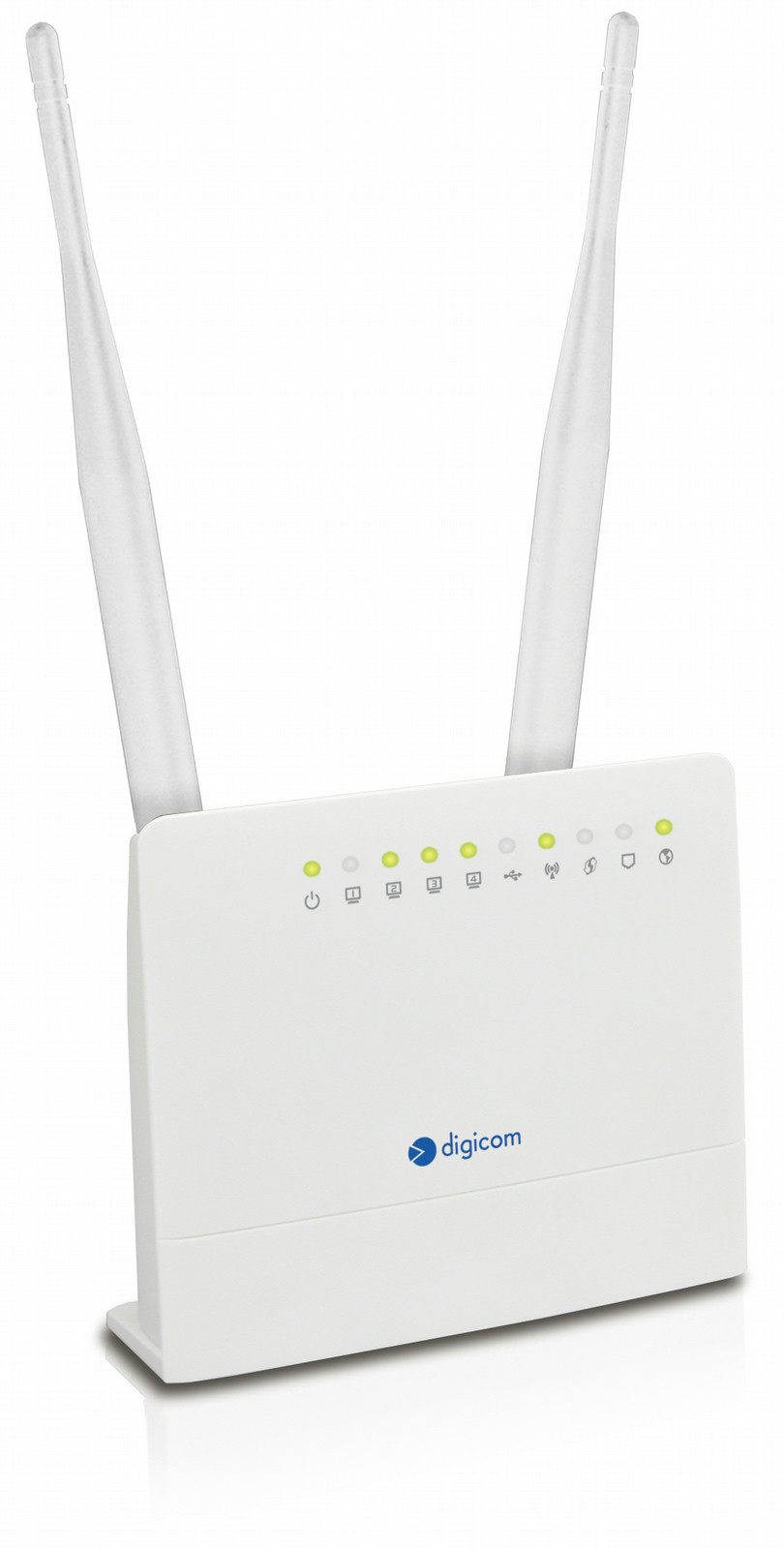

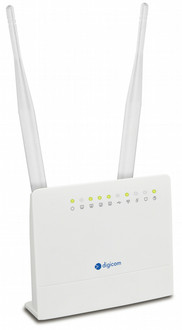

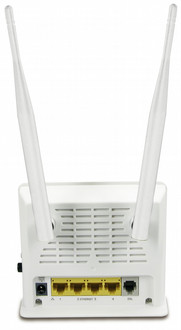

Digicom RAW300L-A05. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1p, Routing protocols: RIP-1,RIP-2, Management protocols: SNMP, UPnP. Supported network protocols: PPPoA, PPPoE, RFC1483, IPoA, IPoE. Antenna type: External
