Ports & interfaces
| Cabling technology |
10/100 Base T |
Other features
| Connectivity LEDs |
Y |
| Frequency range |
2412 - 2483.5 MHz |
| Wireless technology |
IEEE 802.11b |
| Outdoor range |
300 m. |
Performance
| 2.4 GHz |
Y |
| Modulation |
DSSS |
| Frequency band |
2.4 GHz |
| Channels quantity |
13 channels |
Additionally
| Indoors max range |
25 m. |
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |

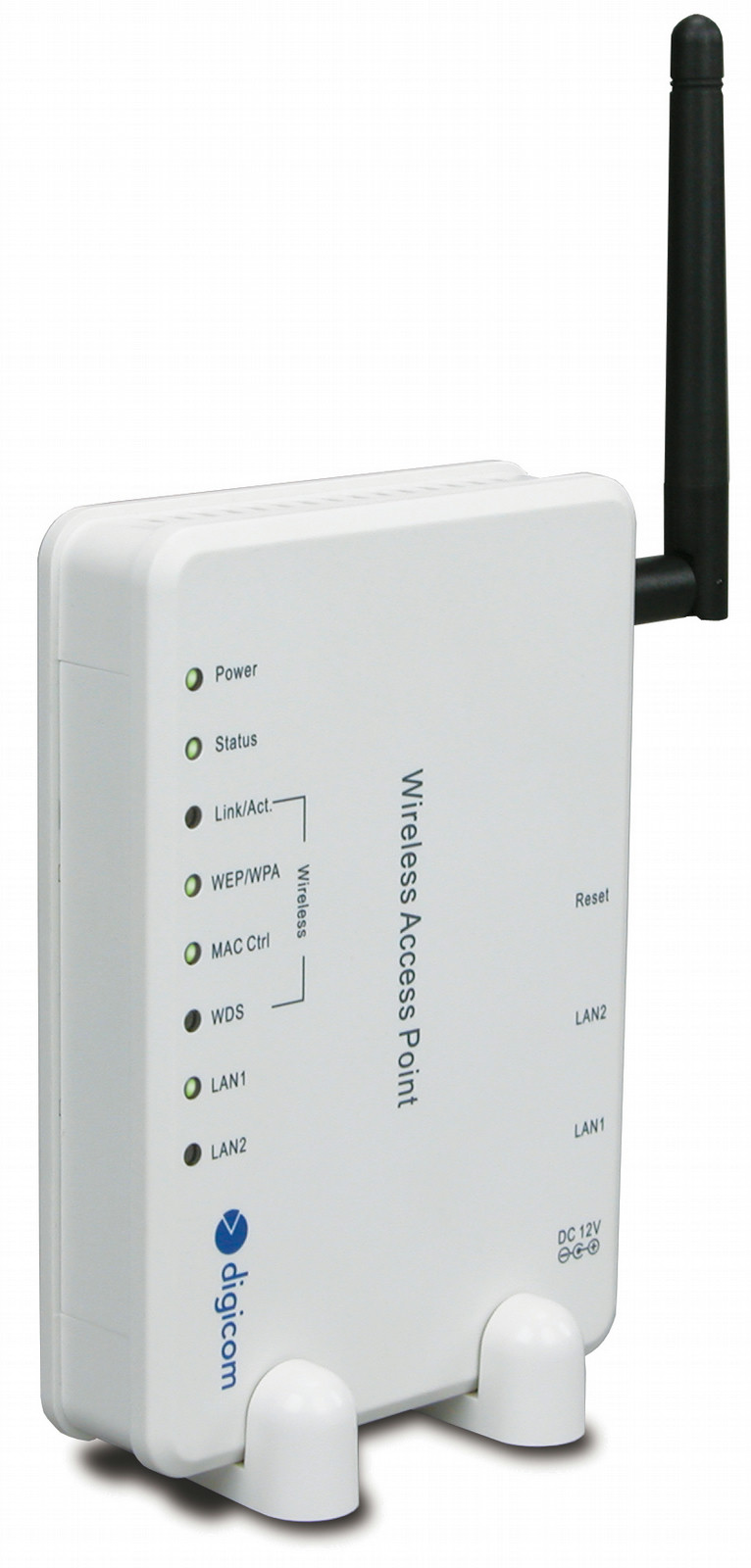

Wireless Access Point to carry out Wireless networks for home and office applications.
WaveGATE 54CX concentrates the Wireless clients communications and acts as a gateway to the wired LAN. All the LAN computers, both wired and wireless, will be able to communicate among them, exchange data and documents, share resources, peripherals and Internet access.
The Roaming function allows the complete movability of the wireless stations inside a covered area with multiple Acces Points connetted among them via Ethernet without any interruption of the connection.
For the data security it loads the new WPA2 protocol (Wi-Fi Protected Access) with the TKIP (Temporal Key Integrity Protocol and PSK (Pre Shared Key).
Easy web based configuration.
