Performance
| Fiber cable diameters supported |
50/125um, 62.5/125um µm |
| Maximum transfer distance |
2000 m |
| Fiber mode structure |
Multi-mode |
| Wavelength |
1310 nm |
Networking
| Auto MDI/MDI-X |
Y |
| Duplex system |
Full |
| Store-and-forward |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Auto-negotiation |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Flow control support |
Y |
Ports & interfaces
| Fiber ports quantity |
2 |
| DC-in jack |
Y |
Packaging content
| Quick installation guide |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |
| Transfer rate (Mbps) |
100 Mbit/s |
IEEE 802.3(u/x), 100Base-FX, SC, 50/125um, 62.5/125um, 1310nm, 2km

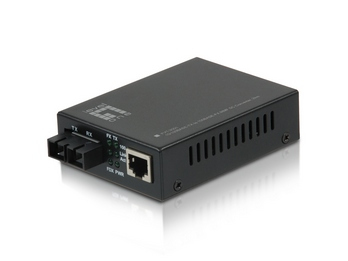

The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
