Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
8.8 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Supported protocols |
SNMP, RMON |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
N |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Rate limiting |
N |
| Link aggregation |
N |
| IP routing |
N |
| Spanning tree protocol |
N |
| Flow control support |
Y |
| DHCP client |
N |
| DHCP server |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| SFP/SFP+ slots quantity |
2 |
| Combo SFP ports quantity |
2 |
Performance
| Packet buffer memory |
0.384 MB |
| Stackable |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

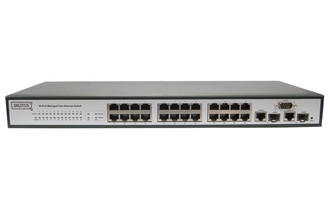

Layer 2 managed Fast Ethernet 24 port Switch, 2 Combo ports
The DIGITUS Workgroup Switches are easy to install and optimized for growing businesses. The support of the Simple Network Management Protocol and the Remote Monitoring standard is the easiest way of integration into the existing network and the existing surveillance software. The Quality of Service function allows a dynamic bandwith usage and the Flow-Control as well as the Store and Forward technology ensure a safe data transmission. Two Gigabit combo ports, where RJ45 ports or fibre SFP ports can be chosen to use and a data throughput of 8.8 Gigabit per second offer enough power for now and for the future.
- Layer 2 managed Switch
- 24 x RJ45 Ports
- 2 x Gigabit combo Ports (RJ45 or Fiber SFP modules)
- Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3z
- Flow Control
- Store and Forward technology
- Auto MDI / MDI-X function
- 8K MAC addresses
- 384KB buffer memory
- 8.8 Gbps throughput
- QoS support
- Port Mirroring for efficient network surveillance
- Port Trunking for Bandwidth Aggregation
- Management via Console, Web or Telnet
- SNMP, RMON support
- Suitable for 19" rack mount (incl. mounting bracket)
