Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
17.6 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Supported protocols |
SNMP, RMON |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
N |
| IGMP snooping |
N |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
N |
| IP routing |
N |
| Spanning tree protocol |
N |
| Head-of-line (HOL) blocking |
N |
| Flow control support |
Y |
| DHCP client |
N |
| DHCP server |
N |
Ports & interfaces
| SFP/SFP+ slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Combo SFP ports quantity |
2 |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Security
| Access Control List (ACL) |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
N |
| Wireless technologies |
Wired |

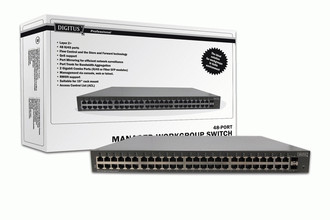

Layer 2+ managed Fast Ethernet 48 port Switch, 2 SFP ports
The DIGITUS Workgroup Switchs are easy to install and optimized for growing businesses. The support of the Simple Network Management Protocol and the Remote Monitoring standard is the easy way of integration into the existing network and the existing surveillance software. The Quality of Service function allows a dynamic bandwith usage. The Flow-Control and the Store and Forward technology as well as the integrated Access Control List (ACL) ensure a safe data transmission. Two Gigabit combo ports, where RJ45 ports or fibre SFP ports can be chosen to use and a data throughput of 17.6 Gigabit per second offer enough power for now and for the future.
- Layer 2+ managed Switch
- 48 RJ45 ports
- 2 Gigabit Combo ports (RJ45 or Fiber SFP modules)
- 2 Gigabit RJ45 ports
- Compatible to the following standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x und 802.3z
- Flow Control
- Store and Forward technology
- Auto MDI / MDI-X function
- 8K MAC addresses
- 512KB buffer memory
- 17.6 Gbps throughput
- QoS support
- Port Mirroring for efficient network surveillance
- Port Trunk for Bandwidth Aggregation
- Management via console, web or telnet
- SNMP, RMON support
- Suitable for 19" rack mount (incl. mounting bracket)
- Access Control List (ACL)
