Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Throughput |
1448 Mpps |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
120 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Power
| Power consumption (max) |
58 W |
| Input voltage |
12 - 58 V |
Ports & interfaces
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
Professional 4-Port Industrial Gigabit Ethernet PoE+ Switch
4-port Industrial Gigabit Ethernet Switch with PoE+ function and 2 TX/SFP combo ports
DIGITUS Industrial Gigabit Ethernet PoE+ Switch, 4-port PSE (802.3af/at PoE+), 2-port TX/SFP combo -40øC ~ 85øC

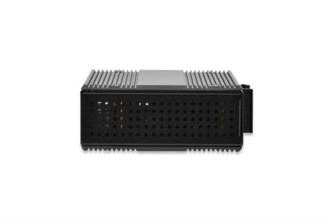

The DIGITUS® industrial switches are designed for harsh environments where they are exposed to moisture, temperature changes and vibrations. With a temperature range from -40 ° C to 85 ° C, the industrial switches are also certified according to NEMA (National Manufacturers Association) TS1 & TS2 and therefore can be used in the harshest conditions. With the redundant power supply constant availability in highly sensitive areas such as transportation, manufacturing, transport and security is guaranteed. The simple plug and play system can be a rapid involvement of industial switches in the needed environment. The DIGITUS® DN-651103 is an unmanaged Plug & Play industrial Gigabit Ethernet switch in a robust IP30 protected aluminum housing. With 4 x 10/100/1000Base-T Ethernet PoE ports and 2 x Gigabit SFP ports the industrial switch is a flexible, cost-effective solution for industrial environments. All switches are designed for use in harsh environments and could be used in many applications due to the approvals.
