Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
Other features
| xDSL connection |
Y |
| Bandwidth |
2.4 GHz |
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

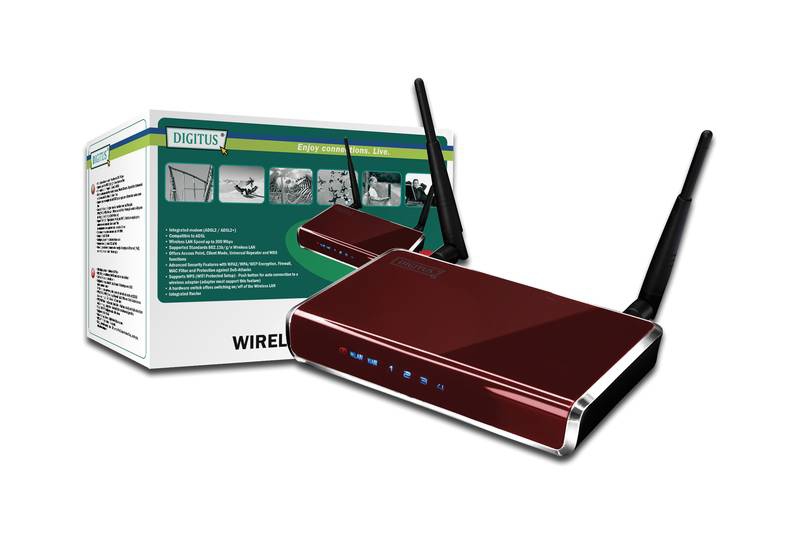

DN-7060, Modem ITU-T G.992.3 G.992.4 G.922.5 (ADSL2 / ADSL2+), 802.11b/g/n, 2.4GHz, 300 Mbps, WPA2, WPA, WEP, WDS, WPS, RP-SMA, 4x RJ45 LAN, 1x RJ11, DMZ, DDNS, VPN
All you need for Internet access and networking in one smart package.
- Integrated modem ITU-T G.992.3 G.992.4 G.922.5 (ADSL2 / ADSL2+).
- Annex B.
- Downstream up to 24Mbps and upstream up to 1Mbps.
- Compatible to ADSL.
- Wireless LAN Speed up to 300 Mbps.
- Supported Standards 802.11b/g/n Wireless LAN.
- Transmission in the 2.4GHz frequency band.
- Offers Access Point, Client Mode, Universal Repeater and WDS functions.
- Advanced Security Features with WPA2/WPA/WEP Encryption, Firewall, MAC Filter and Protection against DoS-Attacks.
- Supports WPS (WiFi Protected Setup) - Push button for auto connection to a wireless adapter (adapter must support this feature).
- 2 detachable antennas with RP-SMA connector.
- A hardware switch offers switching on/off of the Wireless LAN.
- Integrated Router.
- Connection: 4x RJ45 LAN, 1x RJ11 ADSL.
- Advanced Features: Virtual Server, DMZ, DDNS, VPN pass through, Web User Interface, Port Trigger, Port Forwarding, Upgradeable Firmware.
