Data transmission
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
Networking
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
Performance
| Packet buffer memory |
4 MB |

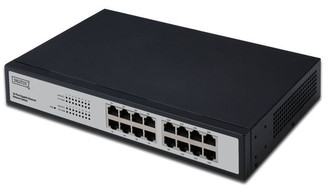

Gigabit Ethernet 16-port Switch - 10/100/1000Mbps Gigabit Ethernet, Auto-MDI/MDI-X
- 16-port 10/100/1000Mbps Gigabit Ethernet Switch
- Compliant to the network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
- Provides non-blocking, non-head-of-line forwarding
- Supports back pressure and bandwidth control on each port
- Advanced store-and-forward packet switching ensures an optimized data transfer
- Auto-Negotiation for 10/100/1000Mbps
- Auto-MDI/MDI-X for cable detection
- Noiseless design - without fan
- Provides 16K MAC address and 4 Mbit RAM buffer
- Power, Link/Active, Speed indicators for network status
- 483mm (19") Rack Mount Kit included
- Operating system independent, supports e.g. Windows, Linux, Mac-OS and Sun.
