Performance
| Hot-Plug support |
Y |
| Tx power (min) |
-5 dBmW |
| Fiber cable diameters supported |
9/125 µm |
| Rx wavelength (max) |
1310 nm |
| Tx wavelength (max) |
1550 nm |
| Rx power (min) |
-24 dBmW |
| Maximum transfer distance |
20000 m |
Networking
| Cabling technology |
1000Base-LX |
| Interface type |
mini-GBIC/SFP |
| Fiber ports quantity |
1 |
Additionally
| Transfer rate (Mbps) |
1250 Mbit/s |

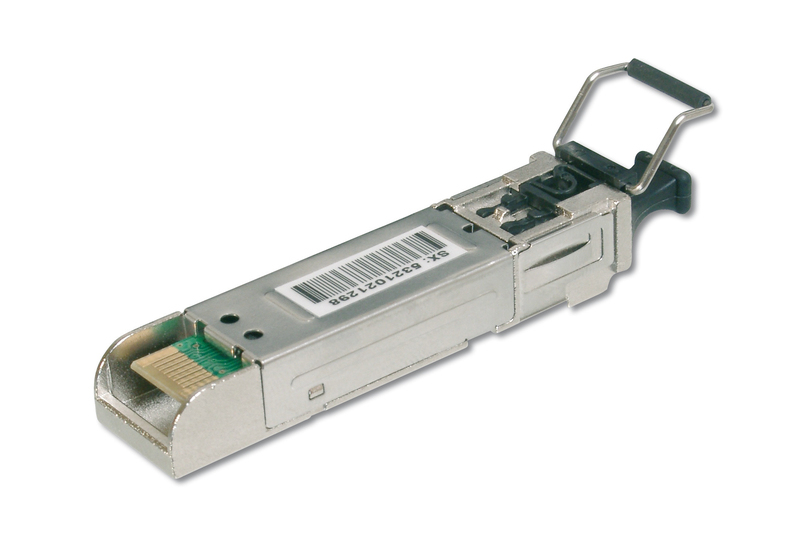

DIGITUS 1.25 Gbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector, Industrial Ver. 1000Base-LX, Tx1550nm/Rx1310nm
The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
