Digitus DN-95312 Managed Power over Ethernet (PoE) Black network switch

Digitus DN-95312 Managed Power over Ethernet (PoE) Black network switch

EAN: 4016032279556
MPN: DN-95312
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Data transmission

Store-and-forward Y
Supported data transfer rates 10/100 MBit/s
Maximum data transfer rate 0.1 Gbit/s
Number of VLANs 8

Networking

VLAN support Y
Port mirroring Y
Broadcast storm control Y
Link aggregation Y
Spanning tree protocol Y
Flow control support Y
10G support N
Full duplex Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16
Copper ethernet cabling technology 100BASE-TX, 10BASE-T

Security

MAC address filtering Y

Management features

Quality of Service (QoS) support Y

Other features

Power LED Y

Power over Ethernet (PoE)

Power over Ethernet (PoE) Y

Design

Rack mounting Y

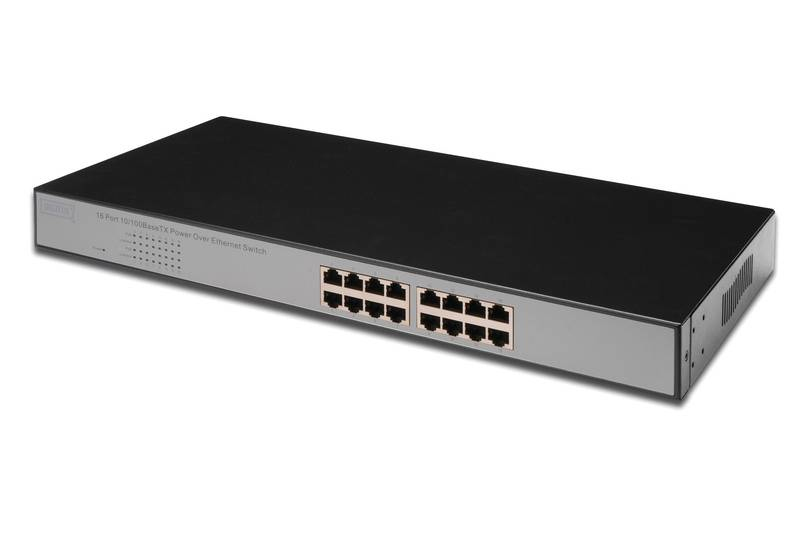

16-Port PoE Web Smart Fast Ethernet Switch - 16-Port 10/100BaseTX with PoE
- PoE Power Output 48V/DC, max. 15.4W per Port
- Supported Standards: IEEE 802.3x Full-duplex and Flow Control, IEEE 802.3ad Trunk (Link Aggregation), IEEE 802.3af Power over Ethernet (PoE), IEEE 802.1Q VLAN, IEEE 802.1p Class of Service, IEEE 802.1x Port Based Network Access Control, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
- Store and Forward technology
- Supports Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Storm Control
- PoE On/Off setting via Web Management
- VLAN Setting Port-based 8 groups / Tag-based: 20 groups
- Trunk Setting 2 groups (1 - 4 port for each group)
- QoS Setting: up to 4 queues
- Supports MAC Address Filtering, TCP/UDP Filtering
- Backup/Recovery Configuration
- Inclusive Mounting Accessories for Rack Installation
- Operating system independent, supports e.g. Windows, Linux, Mac-OS and Sun
