Power
| Input current |
0.8 A |
| External power adapter |
Y |
| Input voltage |
5 V |
Ports & interfaces
| DC-in jack |
Y |
| Fiber ports quantity |
1 |
Performance
| Wavelength |
1310 nm |
| Rx power (min) |
-30 dBmW |
| Fiber cable diameters supported |
50/125, 62.5/125 µm |
| Buffer size |
128 KB |
| Tx power (min) |
-22 dBmW |
| Maximum transfer distance |
2000 m |
| Fiber mode structure |
Multi-mode |
| Tx power (max) |
-12 dBmW |
Other features
| Transmission distance (max) |
2 km |
Networking
| Auto MDI/MDI-X |
Y |
| Duplex system |
Half, Full |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |

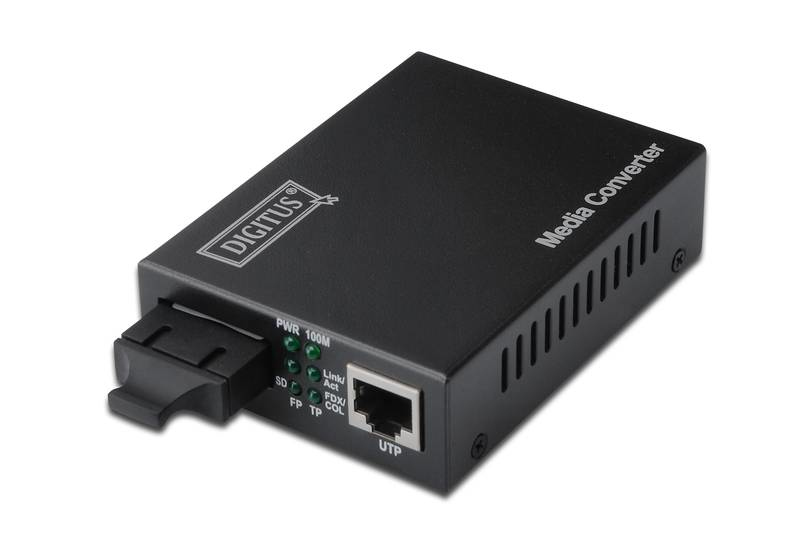

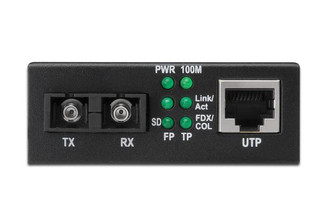

RJ45/SC, 10/100Base-TX - 100Base-FX, LED
The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
