Other features
| Ports quantity |
2 |
| Mac compatibility |
N |
| Data transfer rate |
66 Mbit/s |
Performance
| Chipset |
Silicon Image 0680 |
Additionally
| Wireless technologies |
Wired |

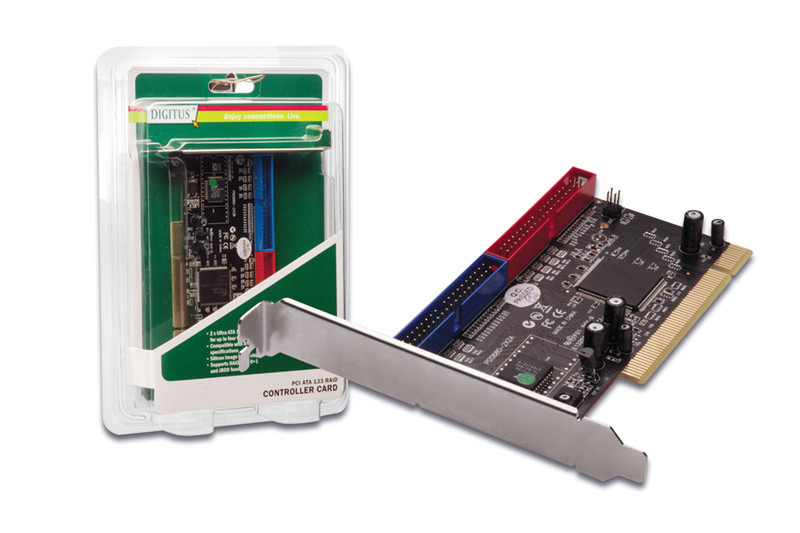

IDE ATA133 Raid Controller, PCI 32 bit
Expans the PC system with additional two IDE/ATA interface ports for up to four IDE/ATA devices. Optional useable as standard IDE/ATA controller or as RAID controller, which supports RAID 0, 1, 0+1 and JBOD functionality.
- 2 x Ultra ATA 133 IDE connectors for up to four IDE/ATA devices
- Compatible with ATA/ATAPI-6 specifications
- Supports the Scatter/Gather function for the DMA/UDMA function
- Supports Max. PCI bus master data transfer rate of 66MB/Sec.
- Fully backward compatible with Ultra ATA/133, EIDE/Fast ATA-2 IDE & ATAPI devices
- PCI bus 32 bit
- Silicon Image 0680 chipset
- Supports RAID 0, 1, 0+1 and JBOD function
- OS Supports: Windows 98SE/ME/NT4.0/2000/XP, Windows Vista 32-bit and Window Vista 64-bit.
- Package contents: 1x IDE cable, 1x driver CD, 1x low profile bracket, 1x user manual
