Dorma BTS75 V

Dorma BTS75 V

EAN: 4021226010839
MPN: 61701000
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Features

Maximum door width 1100 mm
Type Floor mounted door closer
Maximum door weight 120 kg
Best uses Fire check door
Suitable for door type Single-leaf door/Double-leaf door
Variable closing speed Y
ANSI spring size 4
Hold open function Y
Interchangeable spindle inserts Y
Valves quantity 2

Packaging content

Cement box included Y
Spindle included N

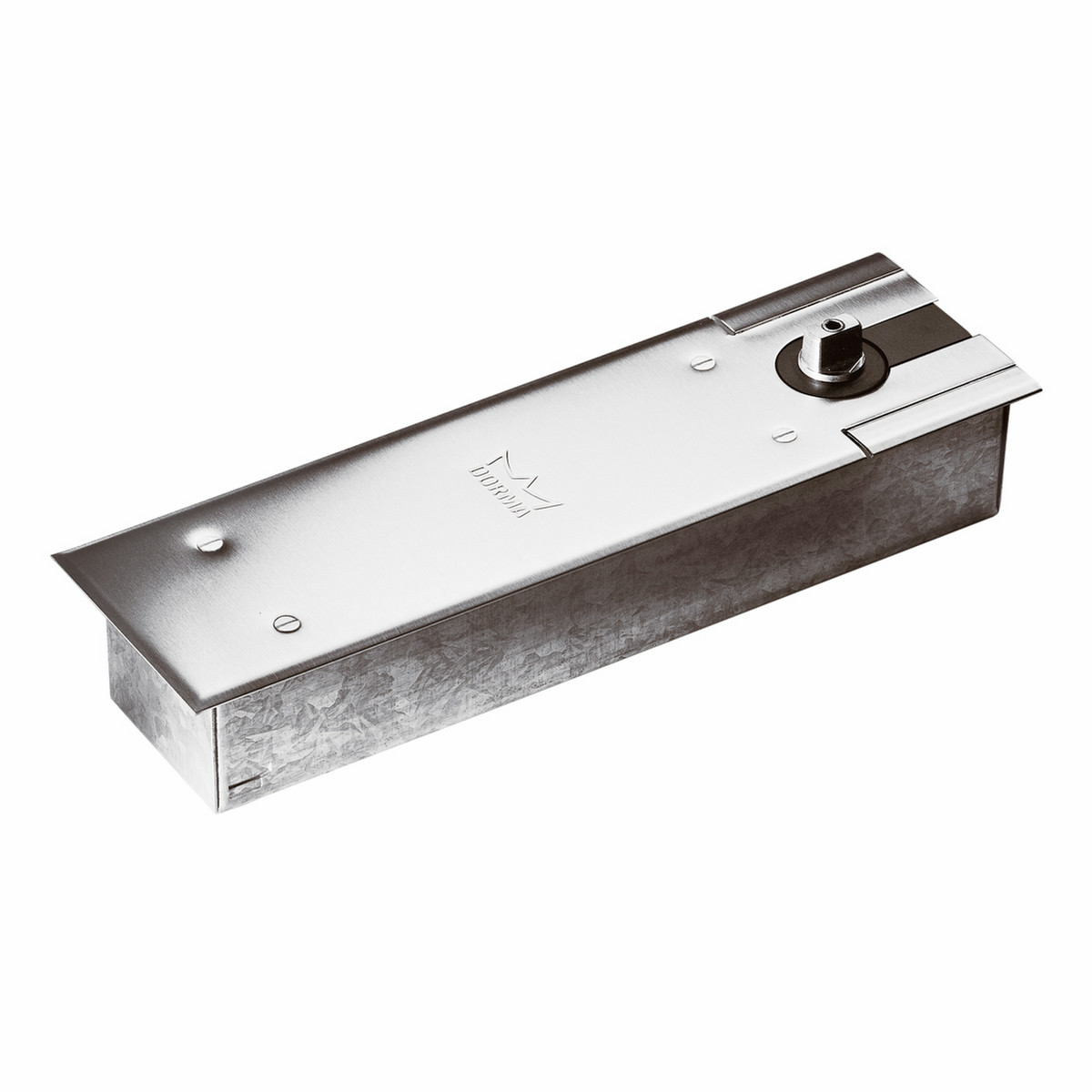

BTS75 V, EN 1-4, 0˚, 82 x 275 x 50 mm, with axle shaft, 3 kg Floor-Concealed Door Closer
The BTS 75 V Series of floor-concealed door closers offer adaptability to almost any installation. The closer's compact body permits its use where a larger closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. A wide selection of interchangeable spindles makes the BTS75V suitable for virtually any floor covering or threshold application.

Adjustable spring sizes
Adjustable spring power from size 1–4 allows the necessary adjustment required for both barrier-free and non-barrier-free openings, giving ultimate installation flexibility.

Applications
Trouble-free performance under adverse climatic and traffic conditions makes the BTS75V floor-concealed closer dependable and a perfect choice for even the most rigorous applications. For total control and uncompromising creativity for any door opening, specify a BTS75V floor-concealed closer.

Product features
- Concealed installation
- Adjustable spring size 1-4
- Non-handed for single and double-acting doors
- Mechanical backcheck
