Networking
| Supports ISDN connection |
N |
| Data link protocols |
ADSL G.dmt ( G.992.1 ), ANSI T1.413 Issue2; ADSL2 G.dmt.bis ( G.992.3 ); ADSL2+ ( G.992.5 ) |
| Management protocols |
AAL5 ( RFC 2684 ), 8 PVCs, PPPoE |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| xDSL connection |
Y |
| Interface |
ADSL, LAN, WLAN |
| Networking features |
DNS, SNTP, RADIUS, DNS cache / proxy, UPnP, IGMPv2 proxy / snooping |
Protocols
| Supported network protocols |
PPTP, IPSec, L2TP, L2TP over IPSec |

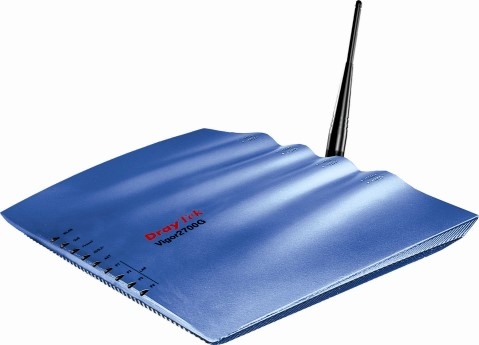

Vigor 2700G, AnnexA : 1-port ADSL2+, RJ-11 connector
The DrayTek Vigor 2700 Series ADSL routers are designed to be the ideal ADSL-sharing and firewall device for to the SoHo (Small Office / Home) user. They combine performance, features and price into an attractive, relible and easy-to-use product, with the pedigree and thoughtful design DrayTek are renowned for.
Vigor2700 Series Highlights
- Built-in ADSL modem - plugs directly into your ADSL-enabled line;
- Compatible with ADSL, ADSL2, ADSL2+ up to 24Mb/s downstream;
- Universal Plug'n'Play (uPnP);
- Firewall - Help protect your PCs from external attacks;
- NAT Port redirection, forwarding and IP-DMZ;
- VPN Passthrough for VPN client/server running behind the router;
- 4-Port 10/100BaseT Ethernet Switch (with automatic uplink detection) for PC/Mac connection;
- Automatic support for popular multimedia applications including MSN Messenger;
- Dynamic DNS Posting, compatible with popular DDNS providers;
- Easy configuration, monitoring & control from web-interface;
- DNS Proxy/Cache & DHCP Server;
- Wireless LAN Interface (Vigor2700G and Vigor2700VG only):
- 802.11b & 802.11g Compatibility;
- WEP & WPA Wireless Security & Encryption.
