Security
| Firewall security |
Multi-NAT, SPI, DoS |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Mobile network connection |
N |
| xDSL connection |
Y |
| USB version |
2.0 |
| USB ports quantity |
1 |
| Power supply type |
AC/DC |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n |
Antenna
| Antenna type |
external |
| Antennas quantity |
3 |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Ports & interfaces
| RJ-11 ports quantity |
4 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
4 x 10/100M, ADSL2/2+, USB

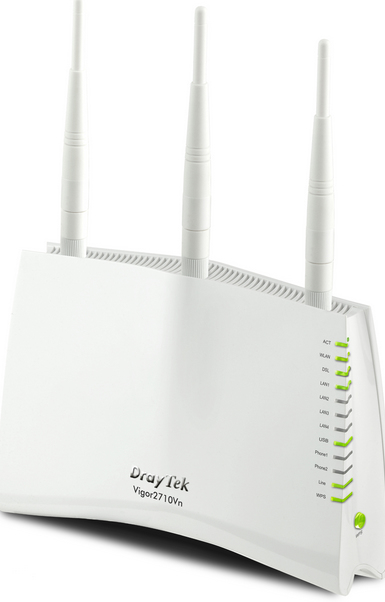

The Vigor2710Vn is a highly integrated network access devices not only offer rich functionality with up to 24Mbps bandwidth in downstream but also a built-in VoIP port to provide a cost-saving alternative for calls. The integrated economical design makes the ideal balance of ease of use and secure network management
Vigor2710Vn complies with IEEE802.11n standards. The wireless LAN isolation, Mac address control, and WEP/WPA/WPA2 encryption let you easily set up Wireless network for your home. Vigor2710Vn has two analogue phone connectors and one line port.
You can attach USB storage device to USB port of Vigor2710Vn to share files. Or, you can use USB printer by connecting it to USB port.
Besides powerful firewall protection against malicious Denial of Service(DoS) attacks, the Vigor2710Vn is designed with more advanced security feature such as Stateful Packet Inspection(SPI) to offer network reliability by detecting attacks and prohibits malicious penetrating packets from entering internal network.
The easy-to-use CSM (Content Security Management) can prevent family from the connection to Web sites that contain illegal or objectionable content. The use of bandwidth/session consuming Peer-to-Peer (P2P) applications can be properly managed by embedded CSM.
Furthermore, embedded with VPN support for confidential remote access, the Vigor2710Vn is equipped with powerful DES, 3DES encryption engine and automated key management via IKE to easily create 2 simultaneous VPN tunnels.
Combining the Internet telephony service from Internet Telephony Service Provider (ITSP), the Vigor2710Vn charter VoIP calls to be made to any legacy phone numbers, even including mobile and long distance numbers. By making the most of your ADSL line, the call will be carried to the destination via Internet so you can save on the telephone bill. When encountering Internet failures, the automatic fail-over mechanism of Vigor2710Vn will intelligently redirect calls via legacy telephone line. Also the Vigor2710Vn will bypass all calls to telephone line during power cuts to ensure an outgoing life line.
A line port allows connection to a PSTN line so the user can select either the PSTN or VoIP for the calls, and can access the PSTN line during power black-outs when VoIP are cut off (only available on port2) - a security feature that may save lives.
