Networking
| Supports ISDN connection |
Y |
| Routing protocols |
RIP-2 |
| VoIP protocols |
SIPv2 (RFC3261), RTP/RTCP |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Security
| VPN support |
PPTP, IPSec, L2TP, L2TP, IPSec; AES, MPPE |
| VPN tunnels quantity |
32 |
| Firewall |
Y |
| MAC address filtering |
Y |
Other features
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| xDSL connection |
N |
| Rack mounting |
N |
| USB ports quantity |
1 |
| Power supply type |
AC/DC |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
Antenna
| Antenna type |
external |
| Antennas quantity |
2 |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

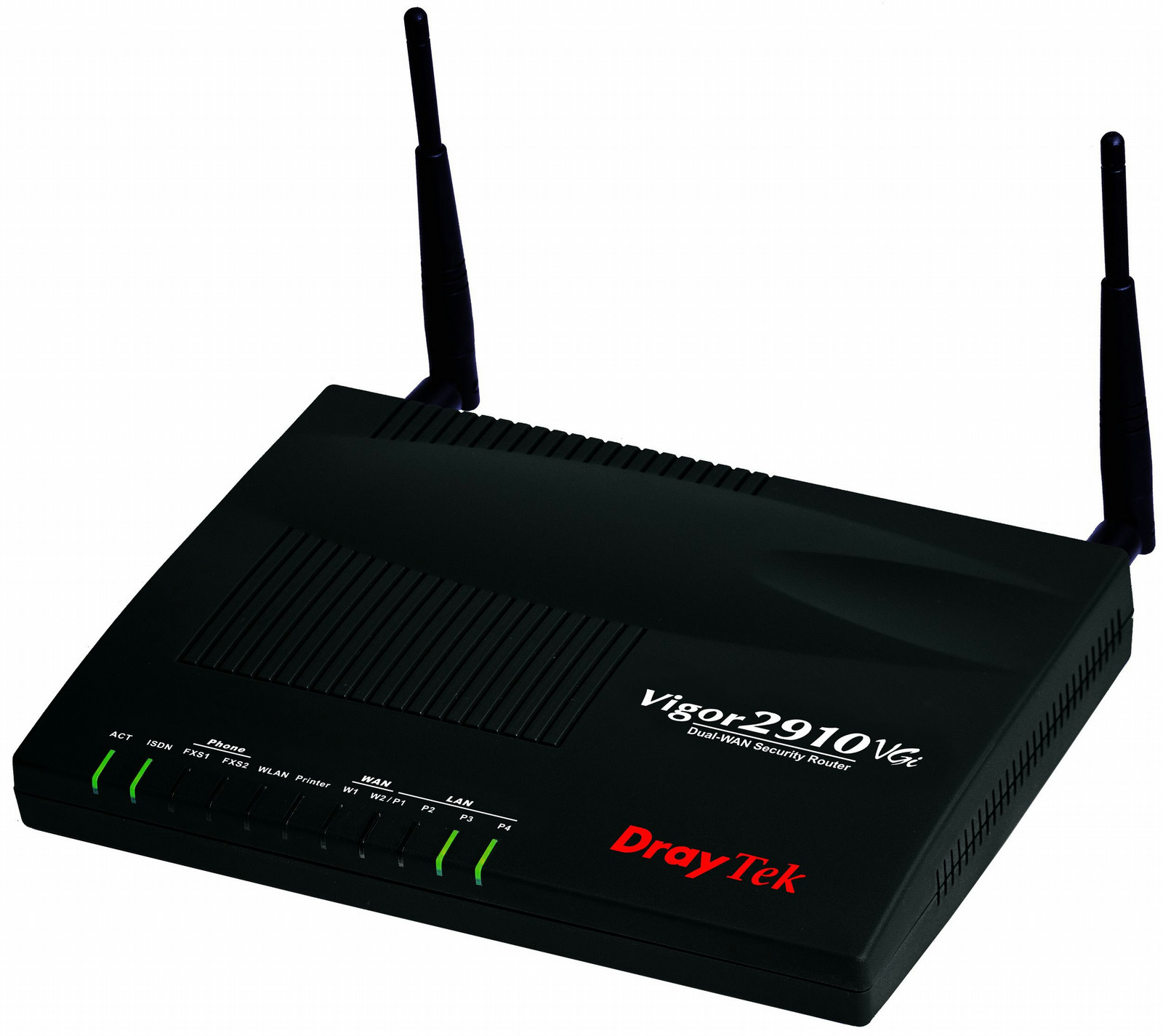

Vigor2910VGi - WLAN 802.11 b/g, 4x 10/100 Base-TX RJ-45, WAN, VoIP, ISDN, VPN, USB 2.0, 10 W, Black
The Vigor2910 series provides a configurable second WAN interface and supports policy-based load-balancing and connection fail-over on dual-WAN interface. Except the QoS function for the original IP layer, it also supports NAT session/bandwidth management which increases the usage efficiency of bandwidth greatly.
Voice-over-IP(VoIP) is extensively supported with providing two separate phone ports and multiple SIP registrars with highly flexible configuration and call handling options.
Wireless supports connection rate up to 108Mbps with Super G™ feature. In addition to WEP/WPA/WPA2 and MAC Address Control, the router also provides Wireless VLAN, 802.1X authentication and Wireless LAN isolation mechanism for the network security. The Flexible design of firewall function makes users configuring the policies of firewall more easily and conveniently.
