Security
| Firewall security |
CSM, SPI |
| VPN support |
PPTP , IPSec , L2TP , L2TP, IPSec |
| VPN tunnels quantity |
100 |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Protocols
| Routing protocols |
RIP-2 |
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Operational conditions
| Non-operating relative humidity (non-condensing) |
10 - 90% |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Other features
| Power LED |
Y |
| Power supply type |
AC/DC |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Wireless technologies |
Wired |
| AC adapter bundled |
Y |

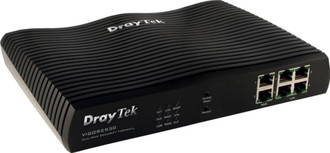

Vigor2930 - 6x 10/100 Base-TX, DHCP, Dual-WAN, SSL VPN, 18 W, Black
The Vigor2930 is a Dual-WAN router with policy-based load-balance, fail-over and BoD (Bandwidth on Demand) ; it also features advanced bandwidth control mechanisms such as IP-layer QoS, NAT session limitation, bandwidth borrowed, etc., to allow easy, flexible and reliable access control and bandwidth management.
It allows users to access Internet and combine the bandwidth of the dual WAN to speed up the transmission through the network. Each WAN port can connect to different ISPs, Even if the ISPs use different technology to provide telecommunication service (such as DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation.
Without the necessity of installing VPN client on individual PC, the Secure Socket Layer (SSL) virtual private network (VPN) facility lets remote workers connect to the office network at any one time. SSL is supported by standard web browsers such as FireFox and IE. For users of small offices and teleworkers who need to access enterprises's internal applications, file server and file sharing, Vigor2930 security router series allow up to 30 concurrent SSL sessions.
