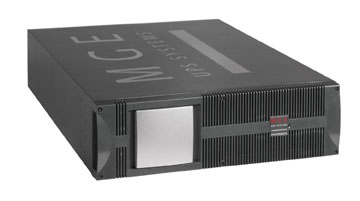

Eaton EX RT Transformer module Grey power adapter/inverter

EX RT Transformer module High-availability

- Hot swappable UPS and battery modules.
- Internal bypass and maintenance bypass included as standard.
- The UPS can be connected to two independent electrical sources (sources 1 and 2 can be common or separate).
- Large input voltage range without draining the battery: 230V +20% to -30% single phase and 400V +15% to -20% three phase.
- Batteries tested automatically at regular intervals and protected against deep discharge.
- N+1 redundancy supported by two single units.

Wide choice of backup times
- From 10 minutes to 2 hours with battery modules or up to 8 hours using the CLA charger module.
- Optional Battery Integration System for automatic recognition of battery modules and minimising size.

Ergonomy
- Multilingual LCD display and LEDs for rapid view of the UPS status and the operating log.
- Self diagnosis and fault messages.

Can be integrated into even the most demanding environments:

Computer
- Tower / 6U Rack convertible.
- Comprehensive range of Power
Distribution Units for convenient power distribution within the rack.

Industrial
- Compatible with all types of generator set.
- Can be integrated into building management systems
- Steel casing
- Operating temperature up to 45°C
- Meets Marine vibration test requirements
- Optional supervision and remote control from UPS terminal control.
