Processor
Processor cache type |
L2 |
Processor cache |
4 MB |
Number of processors installed |
4 |
Processor frequency |
2.2 GHz |
Processor front side bus |
800 MHz |
Processor cores |
2 |
Other features
Video modes resolution |
2048 pixels |
Manageability features |
EPSM |
Hard disk controller |
SATA 3Gb/s |
Power availability |
270 W |
Number of drive bays |
8 |
Storage
Hard drive size |
2.5 " |
Hard drive interface |
Serial ATA |
Number of hard drives supported |
8 |
Total storage capacity |
8192 GB |
Number of hard drives installed |
4 |
Hard drive capacity |
2048 GB |
Hot-swap |
N |
Operational conditions
Operating altitude |
0 - 3000 m |
Non-operating altitude |
0 - 9000 m |
Networking
Networking features |
10/100/1000 Mbps |
Memory
Memory slots |
8 |
Memory clock speed |
533 MHz |
Internal memory |
8 GB |
Internal memory type |
DDR2-SDRAM |
Graphics
Dynamic Video Memory Technology (DVMT) |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
8 |

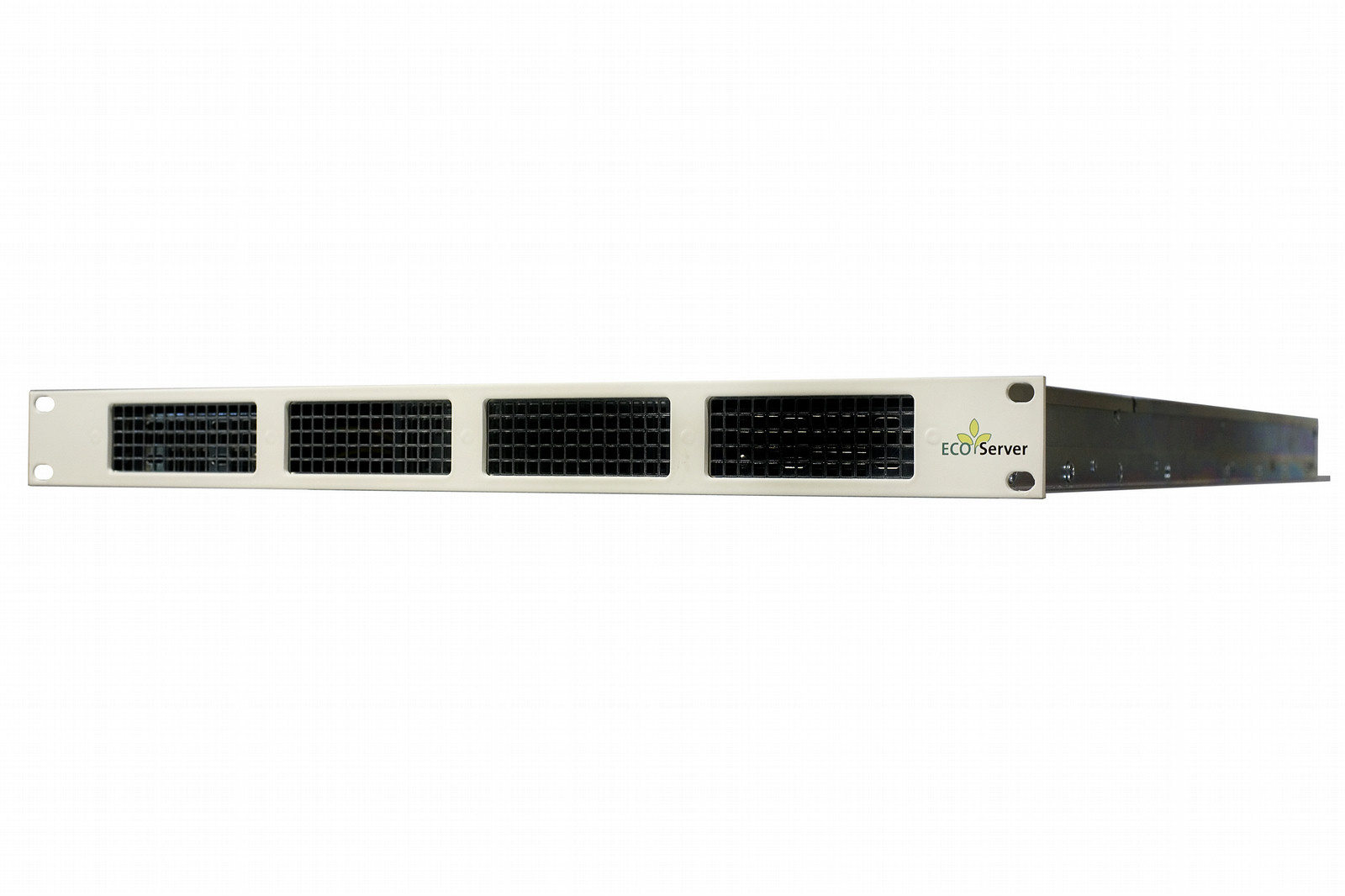

EHA120T7500, 4 fold 1U server 4 x Celeron T7500, 4 x 2GB, 1U rack
The EHA120T7500 is a unique server, specially designed for use in datacenters. It combines intelligent solutions to combine 4 indepedant servers in 1U housing. With an average power usage of 30 Watt per server, the total server consumes approx. 120 Watt. You can have up to 4GB RAM and twos of 2,5 inch HDD's per server. Each server has its own I/O at the back, containing VGA, USB, two 1Gb network ports. The EPSM module is an integrated module to reboot one of the servers on distance through a web-interface. The power consumption is approx 30 Watt per server depending on the configuration.
