Performance
| Motherboard form factor |
Micro ATX |
BIOS
| BIOS memory size |
5 MB |
| BIOS type |
AMI |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Controller (2nd) interface type |
2 x Ultra DMA100/66 |
| Graphics controller |
GMA950 |
| Controller interface type |
4 x Serial ATA2 |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
512 MB |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
Expansion slots
| Expansion slots |
1 x PCI Express x16 \n2 x PCI \n2 x Ultra DMA100/66 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

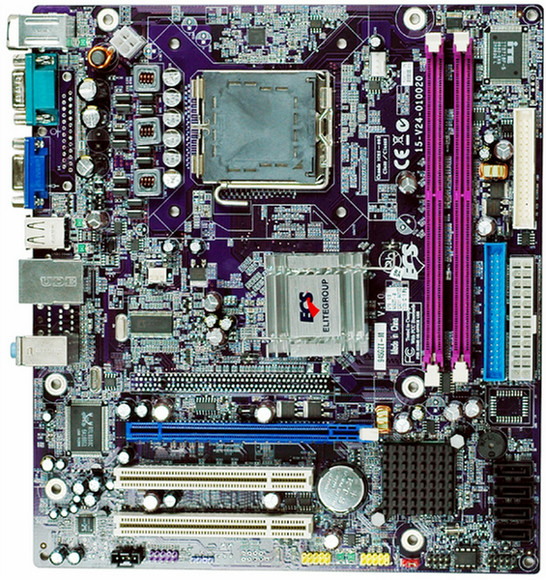

945GZT-M V1.0 - supporting Intel Core™ 2 Duo/Pentium® D processor up to 800 MHZ FSB and GMA950 embedded/ VGA and PCI Express
Certified For Windows Vista
The latest generation Microsoft O.S., delivers better personal productivity and digital entertainment on your PC through its improved reliability, security, and performance.
WHQL Certificate
WHQL Certificate
Core 2 Duo
Core 2 Duo
LGA775
Supports LGA775 Intel Pentium 4 Processor with HT Technology.
Dual Channel DDR2 533
Dual channel DDR2 533 memory delivers up to 8.5 GB/s for more responsive system performance.
10/100 LAN
Supports 10Mbps & 100Mbps N-way auto-negotiation networking.
Serial-ATA 2
Double bus bandwidth which provides blazingly high disk performance, ensuring your computing experience will be faster, more reliable, and completely with current and future hardware and software.
Intel GMA 950
An intelligent and responsive graphics engine built into the chipset that is on the motherboard. This integration provides incredible visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.
high-speed USB 2.0
Delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers
6-Channel Audio
High-quality 6-channel audio brings a more vivid sound experience
PCI-Express Lite
PCI-Express Lite is an ECS patent design. To make use of the PCI Express interface, it can not only upgrade the expansion of PCI-E x16 graphic card, but also support the Multi-Display function.
