Performance
Motherboard form factor |
Mini ATX |
Motherboard chipset family |
Intel |
Audio system |
Realtek ALC662 |
Component for |
PC |
Cooling type |
Passive |
Memory
Supported memory clock speeds |
800, 1066 MHz |
Unbuffered memory |
Y |
Supported memory types |
DDR3-SDRAM |
Memory channels |
Single |
Memory slots type |
SO-DIMM |
Number of memory slots |
2 |
Maximum internal memory |
32 GB |
BIOS
BIOS memory size |
4 MB |
BIOS type |
AMI |
Processor
Maximum number of SMP processors |
1 |
Internal I/O
USB 2.0 connectors |
3 |
Number of SATA II connectors |
2 |
Peripheral (Molex) power connectors (4-pin) |
2 |
Front panel audio connector |
Y |
Graphics
DirectX version |
9.0 |
Graphics adapter family |
Intel |
HDCP |
Y |
Other features
Number of DIMM slots |
2 |
Internal memory type |
240-pin |

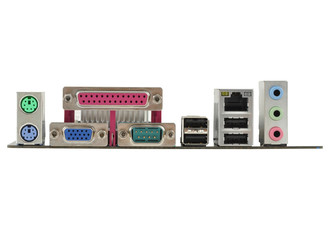

Back panel I/O ports
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Y |
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Expansion slots
PCI Express slots version |
2.0 |
Additionally
Chipset |
Intel NM10 Express |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

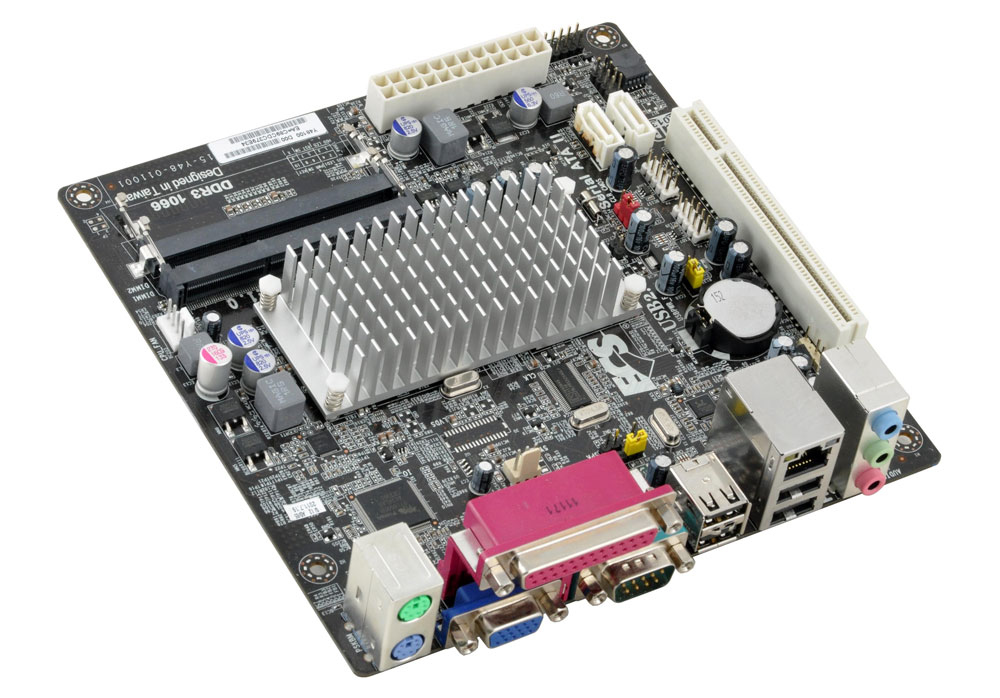

Intel Atom D2550 (1M Cache, 1.86 GHz), 240-pin DDR3 1066/800 MHz, SATA II, Gigabit Ethernet, HDMI, AMI BIOS
Durathon Technology - Motherboard quality you can trust.
When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. Trust only motherboards built with Durathon Technology.
M.I.B. III
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
Mutli-language BIOS
Multi-language BIOS allows you to see and set up the BIOS with your native language. It helps Non-English users to solve the problem of setting up the BIOS and achieve extra system performance easily.
ECS GUI UEFI BIOS
ECS GUI UEFI BIOS is a convenient tool for tweaking BIOS in Graphical interface. Users can select functions in BIOS with mouse and keyboard. The user-friendly interface with ECS designed wallpaper radically brings users convenience and easy-to-use experience.
Intel® Atom
Based on a new microarchitecture, the 45nm Intel® Atom™ processor was developed specifically for targeted performance and low power. This processor is small yet powerful enough to enable a big Internet experience on a new wave of Mobile Internet Devices and simple, low-cost PC's.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
Mini PCI Express
The Mini-PCIe slot has a new 52 pin edge connector and it is much smaller in overall size. It is designed for laptops and other small-footprint computer systems and supports Mini-PCI card for mini- Wireless, mini-TV tuner, mini-SATA cards and so on.
SATA 3.0Gb/s
Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.
6 Channel High Definition Audio
Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Giga LAN
Delivers transfer speed ten times faster than conventional 10 / 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.
USB 2.0
The latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
HDMI Output
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
D-Sub output
D-Sub connection technology is used for connecting computer and monitor by analog signal. It is reliable and stable for signals transmit from point A to B.
eBLU - BIOS Live Update Utility
ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.
eDLU - Drivers Live Update Utility
ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
eSF(ECS Smart Fan Utility)
ECS Smart Fan Utility provides smart and user friendly way to adjust fan speed depending on PCs system loading and temperature. It offers five modes to adjust fan speed within safe range without entering BIOS for smart, easy and silent environment.
Norton™ Internet Security
Simple, Easy-to-Use Interface, delivers fast and comprehensive online threat protection, guarding your PC, network, without slowing you down. Giving you greater insight into downloaded applications, whether they can be trusted, and how they may impact your PC’s resources and performance Offering users a safer and more convenient environment than ever.ECS recommends the immediate installation of Norton Internet Security of your computer.
Fanless Design
The fanless design enables noise-free and dust-free advantages, especially designed for home theater (HTPC) enthusiasts.
Certified For Windows® 7
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
ErP Ready
ECS Motherboards have been certified by ErP of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
MUZEE
MUZEE provides a total solution for online multimedia in the cloud generation, which is easy to integrate with multiple hardware devices. Users can access to thousands of worldwide radio stations, TV channels and games to indulge in the latest online entertainment anywhere and anytime within few simple clicks.
Thin Mini-ITX
A thin mini-ITX board has the same PCB size as a regular mini-ITX board (170 x 170mm) but with approximately half the height of the standard IO shield. This enables a low-profile board that is suitable for AIO integration.
