Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
800, 1066 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Single |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Other features
| Number of processors supported |
1 |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
Additionally
| Chipset |
Intel NM10 Express |
| System bus data transfer rate |
2.5 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

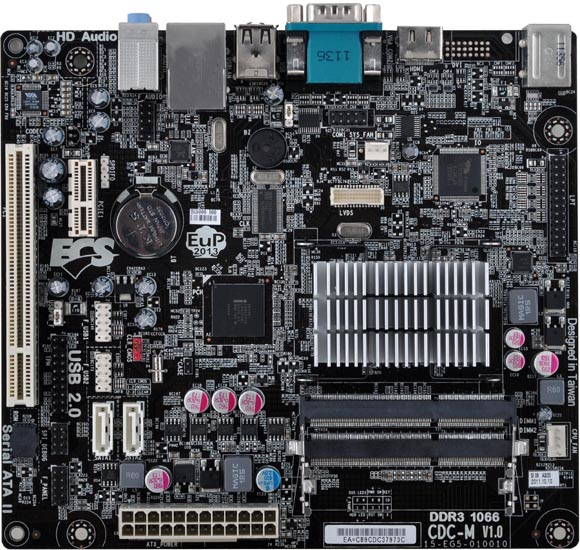

CDC-M (V1.0), Intel NM 10 Express, Intel Atom D2700, DDR3, SATA, USB 2.0, Fast Ethernet
Mutli-language BIOS
Multi-language BIOS allows you to see and set up the BIOS with your native language. It helps Non-English users to solve the problem of setting up the BIOS and achieve extra system performance easily.
Dual core
Outperforms single-core processors on most multithreaded applications while running at lower clock speeds and consuming less power.
Dual DDR3 1066
Doubles the bandwidth of your system memory up to 17.0GB/s and pumps up the system performance.
Serial-ATA II
Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices.
6 Channel High Definition Audio
Integrated 6-channel HD Audio Codec delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
USB 2.0
The latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
RoHS
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
