Performance
| Motherboard form factor |
Mini ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC662 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1600 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Single |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
AMI |
| Clear CMOS jumper |
Y |
Processor
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Internal I/O
| USB 2.0 connectors |
4 |
| Number of SATA connectors |
2 |
| Number of SATA III connectors |
1 |
| Number of SATA II connectors |
1 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Back panel I/O ports
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Additionally
| Chipset |
Intel H81 |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

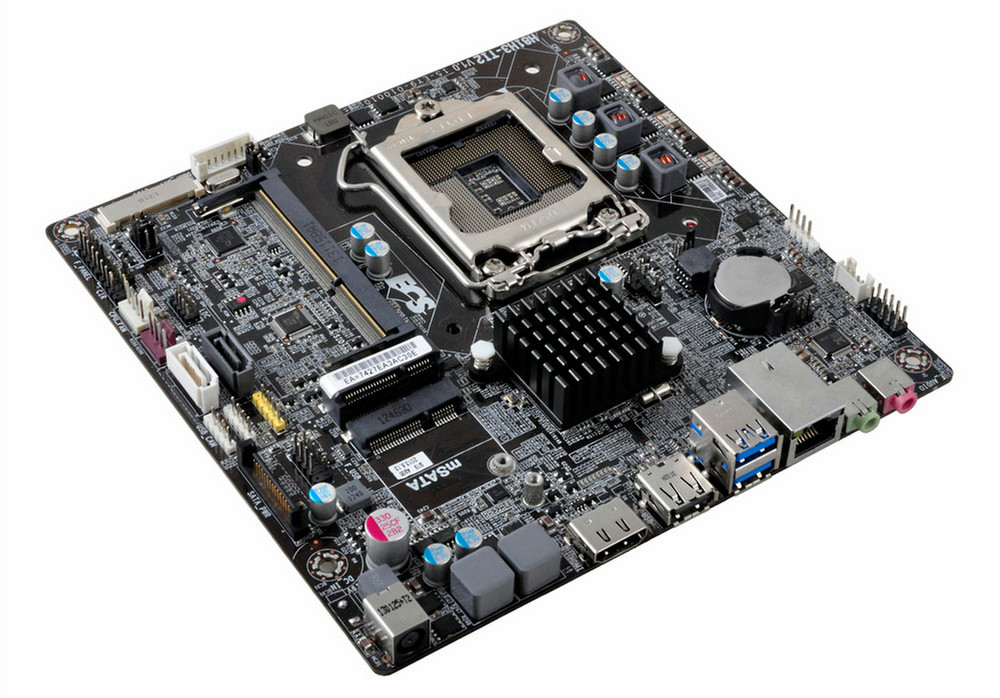

Mini ATX, Socket 1150, Intel H81, AMI BIOS 64MB Flash, 1xSO-DIMM DDR3, 1xSATA3, 1xSATA2, HDMI, Gigabit Ethernet, 2xUSB 3.0, 6xUSB 2.0
All Solid Capacitors
ECS’s All-Solid-Capacitors design brings the great benefit of better durability to users. Better conductivity and heat resistance can be expected as well thus the system stability can be assured under critical conditions.
Anti- Static Design(ESD Protection)
ESD protection design helps to avoid suffering permanent damage when subjected to momentary high voltages to increase the lifespan of motherboard.
EZ BIOS
The most convenient tool to adjust BIOS in graphical interface. Designed with user-friendly interface including auto OC, boot priority, security function and windows 8 support. (Auto OC only for OC available models.)
Support 22nm processors
Intel new 22nm, 3-D transistor architecture enables support for new-generation processors which delivers unprecedented performance improvement, faster computing and graphics and power reduction.
Mini PCI Express
The Mini-PCIe slot has a new 52 pin edge connector and it is much smaller in overall size. It is designed for laptops and other small-footprint computer systems and supports Mini-PCI card for mini- Wireless, mini-TV tuner and so on.
Giga LAN
Delivers transfer speed ten times faster than conventional 10 / 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.
USB 3.0
The latest generation Super Speed USB 3.0 Card is able to transfer data 10 times faster than USB 2.0. An innovative power management system provide better energy saving and carry more power to recharge more USB rechargeable devices. USB 3.0 Card is compatible with USB 2.0 to add more convenience and excellent performance.
HDMI Output
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
Windows 8 Hardware Certification
Support the latest Windows 8 technology which provides touch-enabled control, Apps and can connect with the cloud to connect with your files, photos, people, and settings, wherever you sign in.
ErP Ready
ECS Motherboards have been certified by ErP of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
Thin Mini-ITX
With dimension of 170 x 170mm and limited height of 25mm, thin-mini-itx-based AIO gives users the power of a desktop in a thin and stylish package.
