Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
HDA |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1600 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
6 |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11.1 |
| Discrete graphics support |
Y |
| Number of displays supported |
3 |
Packaging content
| Trial software |
Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee |
| Drivers included |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Additionally
| Chipset |
Intel H87 |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

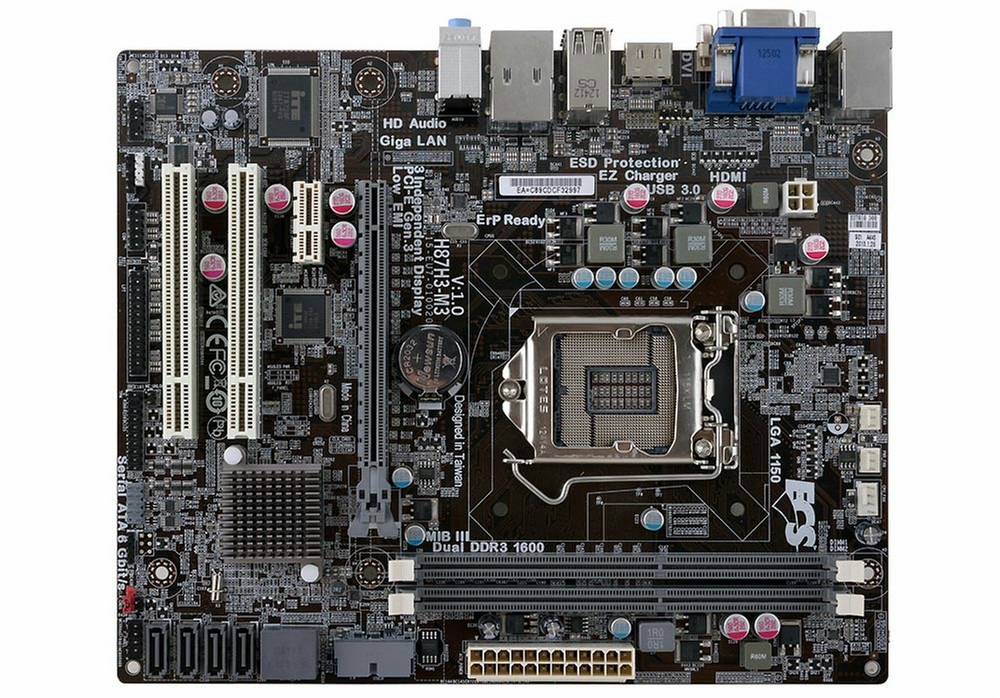

LGA1150, Intel H87 Express, 2x 240-pin DDR3 DIMM, RAID 0/1/5/10, Gigabit Ethernet, AMI BIOS, mATX
- Supports 3 independent displays
- Supports Intel® K Series unlock CPU
- Applied 100% Solid capacitor design to maximize component reliability
- ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan
- Supports Intel® Small Business Advantage (SBA) technology
- Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
- ECS MIB III - A friendly interface for overclocking
- Microsoft Windows 8 Certified
- Intel® 22nm Multi-Core CPU support
- Intel ® VRD 12.5 Ready
- Supports DirectX® 11.1 to enhance graphical performance
- Supports Intel® HD Graphics
- Supports Intel® Rapid Start technology
- Supports Intel® Smart Connect technology
- ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Intel® Small Business Advantage
Intel® SBA delivers the enhanced security & productivity for PCs that small businesses demand
- Unique combination of hardware & software
- Delivers compelling “out-of-the-box” capabilities
- Development platform for future innovation
4K Video Output
Intel Core HD Graphics with 4k display for premium gaming experience with 2.6x graphics improvements.
Durathon Technology - Motherboard quality you can trust.
When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition.
ECS EZ BIOS
ECS EZ BIOS is an exclusive design and the most convenient tool to adjust BIOS in graphical interface. Designed with stunning user-friendly interface and easy-to-use function including Auto OC, boost priority, and security function, EZ BIOS can radically take full advantage of the performance, high-end gaming, multi-tasking and energy efficiency. The latest ECS EZ BIOS allow users to fully satisfy their growing demand with the unique operating designed.
PCI Express Gen3 Ready - Double PCIe 2.0 Bandwidth
PCIe 3.0, the next generation of 32GB/s transmission speed, doubles the bandwidth of previous generation interconnect. PCIe 3.0 strongly builds up a better gaming platform ready for ultra graphics performance.
DirectX® 11 Support
DirectX 11 features the latest technologies of Compute Shaders, Direct 2D, Multithreaded Rendering and Tessellation for create rich worlds, realistic characters and more fluid gameplay.
Motherboard Intelligent BIOS III (M.I.B III)
Providing the most intelligent and convenient way to adjust the clock/ voltage settings of CPU and memory and get the extra performance in advanced.(Certain models could only adjust GPU setting according to chipset limitation.)
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
Anti-Static Design - ESD Protection
ESD protection design helps to avoid suffering permanent damage when subjected to momentary high voltages to increase the lifespan of motherboard. All ECS motherboards pass ESD International standard EC/EN 61000-4-2 Test and bring you stability and durability quality.
Support HD Video Playback
Smoothly playback all H.264, VC-1, and MPEG-2 video with minimal CPU usage through integrated Graphics in chipset or CPU.
CyberLinkMedia Suite Bundled
Bundled the Ultimate HD & Blu-ray Player ,Best Video Editing and Backup/Burn Softwares. (30 Days Trial Version)
These software are complete multimedia solutions in :
- HD playback
- Video Editing
- Media burning
Full Duplex Operation Support - USB 3.0
Ten times the transfer speed of USB2.0, running at speed up to amazing 4.9Gb/s.
Speedy Storage Interface - SATA 6G
Double the transfer speed of SATA 3.0 Gb/s, running at speed up to amazing 6.0Gb/s.
