Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
AMD |
| Audio system |
VIA VT1705 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
800, 1066 MHz |
| Supported memory types |
DDR3-SDRAM |
| Supported memory module capacities |
2GB, 4GB |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
AMI |
| Clear CMOS jumper |
Y |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
2 |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Other features
| Controller interface type |
SATA2 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
AMD |
Back panel I/O ports
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
AMD A45 FCH |
| Graphics |
Radeon HD 6310 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

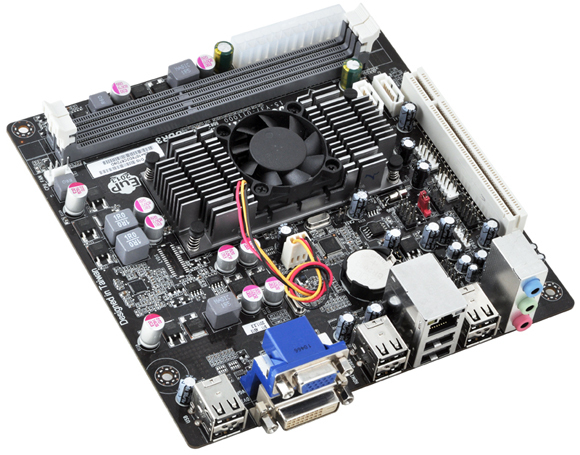

Mini ITX, AMD A45 FCH, FT1, AMD Dual-Core Processor E-350 (1.6GHz), Radeon HD6310, 2xDIMM DDR3, SATA2, 8x USB 2.0, VGA, Gigabit Ethernet, 5.1ch
Supports AMD E350 DDR3 1066MHz
The HDC-I2 supports AMD new Brazos platform based on the AMD Hudso D1 chipset plus the latest dual core processors E350 and integrated DDR3 1066/800 memory controller.The HDC-I2 provides the optimized performance with energy efficiency and a significantly lower cost.
Blu-ray
With integrated graphics core, the motherboard delivers better HD video quality along with best-in-class 3D performance. Smoothly playback all H.264, VC-1, and MPEG-2 video with minimal CPU usage so the PC is free to do other work.
SPDIF Out
S/PDIF (Sony/Philips Digital Interface) is a convenient connectivity and standard audio transfer format. It allows the transfer of audio from one file to another without the conversion to and from an analog format, and keeps the optical connector the best.
USB 2.0
The latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
HDMI Output
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
DVI Output
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
HDCP
A specification developed by Intel Corporation to protect digital entertainment content across the DVI/HDMI interface. HDCP encrypts transmission of digital content between HDCP-compliant devices that it allows users to enjoy HD content through HDCP-compliant playback software.
eJIFFY
ECS eJIFFY is a Linux based interface for a fast boot application which is compressed in a CD to install on the hard drive.Within 8 seconds after the computer boots up, eJIFFY is ready to provide users the total enjoyment for web browsing, photo reviewing and on-line chat. Instead of waiting for the regular OS to start up, eJIFFY serves a convenient center to have quick fun or a glance at the hot news in today’s fast pace world where nothing can be too quick.
eBLU - BIOS Live Update Utility
ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.
eDLU - Drivers Live Update Utility
ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
Certified For Windows® 7
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
AMD Vision Ready
Build your PC with VISION Technology from AMD. Combine AMD processors and ATI Radeon TM graphics to see, share and create a more vibrant digital world.
ROHS
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
EUP 2013
ECS Motherboards have been certified by EuP 2013 of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
