Other features
| Hard drive size |
3.5 " |
| Number of processors installed |
1 |
Motherboard
| Supported processor frequency (max) |
1.8 GHz |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, MS Pro-HG, SD, SDHC |
| Card reader integrated |
Y |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| L2 cache |
1 MB |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Memory
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u |
Networking
| Networking features |
Fast Ethernet |
Additionally
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

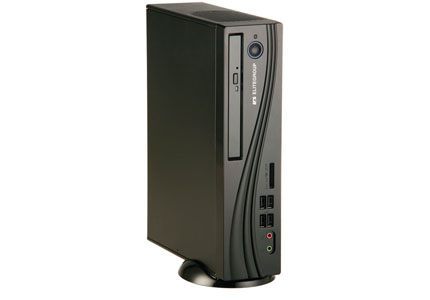

MS110, Intel Atom D525 (1M Cache, 1.80 GHz), 2 x SO-DIMM DDR3-800MHz, 1 x 3.5'' SATA II HDD, Intel HD Grpahics, 1 x SATAII Slim DVD-SM Tray, 6-ch HD, Fast Ethernet, 8 x USB2.0, Mini PCI-E, 65W, Black
Easy to Use
With build-in Intel® ATOM D525 Dual core CPU, ECS's ultra slim and energy-saving Green PC MS110, not only can easily manipulate all kinds of the applications for gaming and word processing, but also let users enjoy good quality of audio and visual enjoyment. MS110 delivers innovative capabilities for digital home, small office, and home office consumers.
4 in 1 card reader
The memory card reader support for 4 different major types of digital storage cards, SD/MMC/MS/XD. Effortless and easy backup of all your data.
EuP Certified
ECS Motherboards have been certified by EuP. EuP certification verifies that ECS motherboards comply with European Union stander to decrease the environmental effects and promote sustainable environment. Save energy and keep healthy environment by choosing ECS motherboards.
6-CH High Definition Audio
Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
RoHS Compliant
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
Intel® Atom™
Atom™ is the smallest processor built with the world's smallest transistors from Intel® delivering the power and performance you need for full Internet capabilities. Thanks to amazing low CPU TDP(4w to 8w) and the smallest size make it being an ideal solution for fan-less embedded systems and SFF PC.
Certified For Windows® 7
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
