Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Audio system |
VIA VT1705 |
| Component for |
PC |
| Cooling type |
Active |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Single |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
AMI |
| ACPI version |
3.0 |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| COM ports quantity |
1 |
| HDMI ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Number of SATA III connectors |
1 |
| Number of SATA II connectors |
3 |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
10.1 |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Additionally
| Chipset |
Intel NM70 Express |
| Graphics |
HD Graphics 2000 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

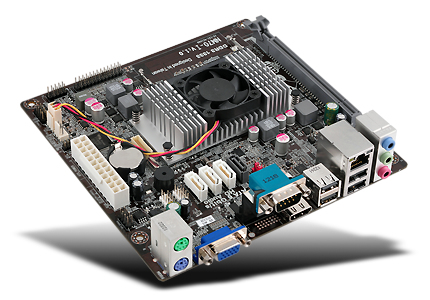

Intel Celeron, Intel HD Graphics 2000, DDR3 1333/1066MHz, SO-DIMM 8GB Max, SATAII/SATAIII, Gigabit Ethernet, USB 2.0, AMI BIOS
- Integrated LVDS for an extra display option;
- Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system;
- Supports ECS Durathon Technology to ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs);
- ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan;
- Integrated Printer (LPT) header to expand functionality;
- Microsoft Windows 8 Certified;
- Supports DirectX® 10.1 to enhance graphical performance;
- Supports Intel® HD Graphics;
- Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function;
- ECS Intelligent EZ Utility : eBLU, eDLU, eSF;
- Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version.
Durathon Technology - Motherboard quality you can trust.
When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. Trust only motherboards built with Durathon Technology.
ECS EZ BIOS
ECS EZ BIOS is an exclusive design and the most convenient tool to adjust BIOS in graphical interface. Designed with stunning user-friendly interface and easy-to-use function including Auto OC, boost priority, and security function, EZ BIOS can radically take full advantage of the performance, high-end gaming, multi-tasking and energy efficiency. The latest ECS EZ BIOS allow users to fully satisfy their growing demand with the unique operating designed.
Support 32nm processors
New 32nm architecture enables support for 6 cores (or above) CPUs as well as the multi-chip packages that allow for integrated graphics on the CPU.
PCI EXPRESS x16
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance
SATA 6Gb/s
Doubles the transfer speed of SATA 3G, running at speed up to 6.0Gb/s, and can connect with any other SATA 3.0Gb/s and 1.5Gb/s devices for backward compatibility.
6 Channel High Definition Audio
Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Gigabit LAN (optional)
Delivers transfer speed ten times faster than conventional 10/ 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.
USB 2.0
The latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
HDMI Output (Optional)
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
eBLU - BIOS Live Update Utility
ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.
eDLU - Drivers Live Update Utility
ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
Norton™ Internet Security
Simple, Easy-to-Use Interface, delivers fast and comprehensive online threat protection, guarding your PC, network, without slowing you down. Giving you greater insight into downloaded applications, whether they can be trusted, and how they may impact your PC’s resources and performance Offering users a safer and more convenient environment than ever.ECS recommends the immediate installation of Norton Internet Security of your computer.
Intelligent EZ Utility
ECS Intelligent EZ provides convenient way of operation letting you use easily and comfortably enjoy high performance on your system.
Windows® 8 Hardware Certification
Support the latest Windows 8 technology which provides touch-enabled control, Apps and can connect with the cloud to connect with your files, photos, people, and settings, wherever you sign in.
