Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC655 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Controller (2nd) interface type |
Ultra DMA133/100/66 |
| Controller interface type |
Serial ATA |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Expansion slots
| Expansion slots |
1 x PCI Express x16 \n2 x PCI\n1 x CNR\n |
Networking
| Networking features |
Fast Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

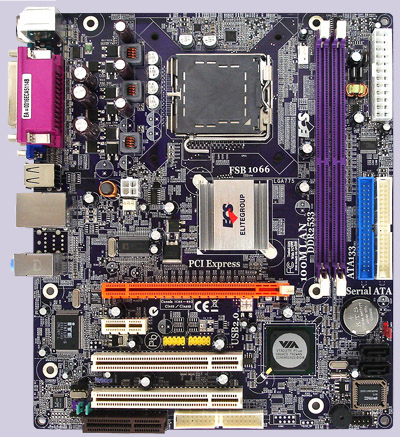

P4M890T-M - 4 GB, Socket 775, DDR2 533 DDR2 SDRAM, VIA P4M890, VT8237R+
WHQL Certificate
WHQL Certificate.
LGA775
Supports LGA775 Intel Pentium 4 Processor with HT Technology.
Serial ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
FSB 1066
Supports the latest 1066MHz front side bus Intel Pentium 4 CPU.
RAID0, RAID1
Provides RAID0, RAID1 modes.
DDR2 533
support DDR2 533.
64bit support
Allows platforms to access more memory and larger files. Large memory intensive applications, such as audio and video encoding, complex engineering programs and games, can see dramatic performance increases.
Dualcore
Dual-core is basically two separate processors on a single chip. Those two processors can outperform single-core processors on most multithreaded applications while running at lower clock speeds and consuming less power.
USB 2.0
USB2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
