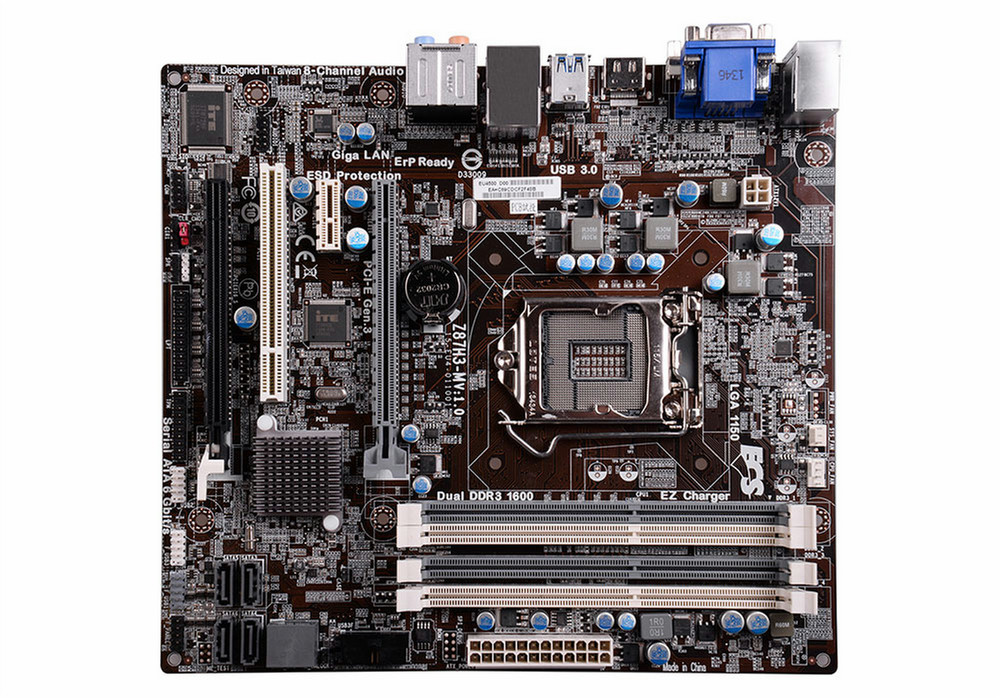

ECS Elitegroup Z87H3-M Intel Z87 Socket H3 (LGA 1150) Micro ATX motherboard

LGA1150 - Intel Core family/Pentium/Celeron, 4 X 240-pin DDR3 DIMM, USB 3.0, USB 2.0, Gigabit Ethernet, mATX - Supports 3 independent displays;
- Supports Intel® K Series unlock CPU;
- Applied 100% Solid capacitor design to maximize component reliability;
- ECS Durathon Technology ensure the stability, reliability and performance of system;
- (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs);
- ESD Protection prevents computers from electrostatic discharge damage to enhance its;
- durability and lifespan;
- Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi;
- language environment;
- ECS MIB III - A friendly interface for overclocking;
- Microsoft Windows 8 Certified;
- Intel® 22nm 4th generation Multi-Core CPU support;
- Intel ® VRD 12.5 Ready;
- Supports DirectX® 11.1 to enhance graphical performance;
- Supports ATI® CrossFireX™ to expand your system’s graphics capabilities;
- Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
- Insider;
- Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function;
- Supports Intel® Smart Response, Smart Connect and Rapid Start Technology;
- ECS Intelligent EZ Utility : eBLU, eDLU, eSF;
- Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9;
- Muzee with trial version.

Windows® 8 Hardware Certification
Support the latest Windows 8 technology which provides touch-enabled control, Apps and can connect with the cloud to connect with your files, photos, people, and settings, wherever you sign in.

M.I.B. III
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.

All Solid Capacitors
ECS’s All-Solid-Capacitors design brings the great benefit of better durability to users. Better conductivity and heat resistance can be expected as well thus the system stability can be assured under critical conditions.

Intel Rapid Storage Technology
Intel® Rapid Storage Technology offers new levels of protection, performance, and expandability for system. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption.

EZ BIOS
The most convenient tool to adjust BIOS in graphical interface. Designed with user-friendly interface including auto OC, boot priority, security function and windows 8 support. (Auto OC only for OC available models.)

Dual DDR3 1600
Doubles the bandwidth of your system memory up to 25.6 GB/s and pumps up the system performance at lower power.

PCI EXPRESS x16
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.

SATA 6Gb/s
Doubles the transfer speed of SATA 3G, running at speed up to 6.0Gb/s, and can connect with any other SATA 3.0Gb/s and 1.5Gb/s devices for backward compatibility.

SATA RAID
SATA RAID allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1). This fulfills a total performance and security purposes that you need for your data.

RAID 0, 1, 5, 10
Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 5(Block Interleaved Distributed Parity), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.

8 Channel High Definition Audio
Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.

Giga LAN
Delivers transfer speed ten times faster than conventional 10 / 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.

USB 3.0
The latest generation Super Speed USB 3.0 Card is able to transfer data 10 times faster than USB 2.0. An innovative power management system provide better energy saving and carry more power to recharge more USB rechargeable devices. USB 3.0 Card is compatible with USB 2.0 to add more convenience and excellent performance.

HDMI Output
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.

DVI Output
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.

Front USB 3.0
Front USB 3.0 solves the trouble of connecting USB port at back panel. Front USB 3.0 with fastest transmission speed allows plugging USB devices in front USB port of your desktop to offer more convenience and time saving.

Norton™ Internet Security
Simple, Easy-to-Use Interface, delivers fast and comprehensive online threat protection, guarding your PC, network, without slowing you down. Giving you greater insight into downloaded applications, whether they can be trusted, and how they may impact your PC’s resources and performance Offering users a safer and more convenient environment than ever.ECS recommends the immediate installation of Norton Internet Security of your computer.

EZ Charger
EZ Charger technology provides 3 times current than general USB port in off mode for USB devices. It’s useful and excellent, especially for the iPhone, iPad and iPod touch devices that need a large amount of current for faster recharging within less time.

Intelligent EZ Utility
ECS Intelligent EZ provides convenient way of operation letting you use easily and comfortably enjoy high performance on your system.

ErP Ready
ECS Motherboards have been certified by ErP of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
