Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
3 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Azalia Digital Header (ADH) connector |
1 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Parallel port via internal header |
Y |
Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| Clear CMOS button |
Y |
Processor
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Packaging content
| Trial software |
Muzee |
| Drivers included |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Additionally
| Chipset |
Intel Z97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

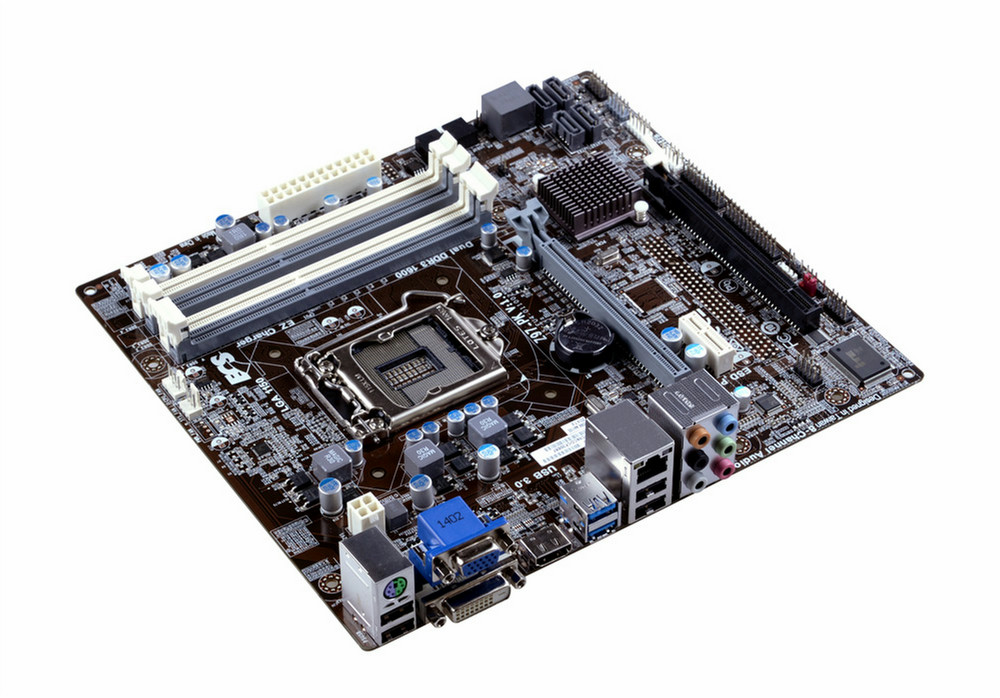

LGA1150, Intel Z97, 4 X 240-pin DDR3 1600 MHz, SATA 6Gb/s, Gigabit Ethernet, USB3.0, mATX
Durathon Technology - Motherboard quality you can trust.
When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. Trust only motherboards built with Durathon Technology. Click " Durathon microsite" for more details.
ECS EZ BIOS
ECS EZ BIOS is an exclusive design and the most convenient tool to adjust BIOS in graphical interface. Designed with stunning user-friendly interface and easy-to-use function including Auto OC, boost priority, and security function, EZ BIOS can radically take full advantage of the performance, high-end gaming, multi-tasking and energy efficiency. The latest ECS EZ BIOS allow users to fully satisfy their growing demand with the unique operating designed.
DirectX® 11.1 Support
The most important new feature of DirectX 11.1 is the stereoscopic 3D support. All of the power of tridimensional contents can be used by video makers and game developers to provide a more immersive and modern experience for the viewer.
Anti-Static Design - ESD Protection
ESD protection design helps to avoid suffering permanent damage when subjected to momentary high voltages to increase the lifespan of motherboard. All ECS motherboards pass ESD International standard EC/EN 61000-4-2 Test and bring you stability and durability quality.
Speedy Storage Interface - SATA 6G
Double the transfer speed of SATA 3.0 Gb/s, running at speed up to amazing 6.0Gb/s.
3X Current Supply for ECS EZ Charger
EZ Charger technology provides 3 times current than general USB port for USB devices. It’s useful and excellent, especially for the iPhone, iPAD and iPod touch devices that need a large amount of current for faster recharging within less time.
Motherboard Intelligent BIOS III (M.I.B III)
Providing the most intelligent and convenient way to adjust the clock/ voltage settings of CPU and memory and get the extra performance in advanced.(Certain models could only adjust GPU setting according to chipset limitation.)
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
CyberLinkMedia Suite Bundled
Bundled the Ultimate HD & Blu-ray Player ,Best Video Editing and Backup/Burn Softwares. (30 Days Trial Version)
These software are complete multimedia solutions in :
- HD playback;
- Video Editing;
- Media burning.
