Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10 Mbps |
| Switching capacity |
5.6 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Number of VLANs |
256 |
Networking
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Rate limiting |
Y |
| Link aggregation |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
1000BASE-TX, 100BASE-TX, 1000BASE-T, 10BASE-T |
| Console port |
RS-232 |
| SFP module slots quantity |
2 |
| SFP/SFP+ slots quantity |
2 |
Performance
| Packet buffer memory |
0.5 MB |
| Flash memory |
16 MB |
| Memory type |
SDRAM |
| Internal memory |
64 MB |
Other features
| Input frequency |
50/60 Hz |
| Networking features |
Fast Ethernet |
| Connectivity LEDs |
Y |
Security
| MAC address filtering |
Y |
| Static port security |
Y |
| SSH/SSL support |
Y |
| Access Control List (ACL) |
Y |
Protocols
| Supported network protocols |
IPv4/IPv6, RMON |
| Data link protocols |
LLDP |
| Management protocols |
SNMP v1, v2c, v3 |
Power
| Input voltage |
100 - 240 V |
| Input current |
0.8 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

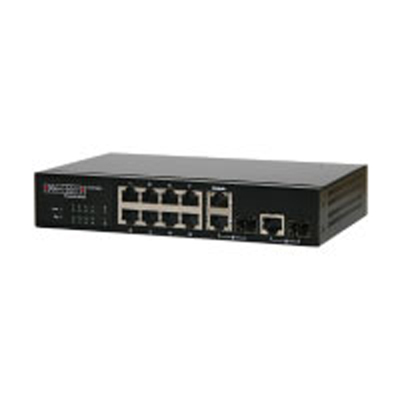

ES3510MA, Managed, Standalone, Fast Ethernet, L2, 8 x 10/100Base-T, 2 x 10/100/1000Base-T(Base-SX/LX/LH), 1 x RS-232 (DB-9), QoS, 0.9kg, Black
Fast Ethernet Standalone Switch
- Compact size design for space-saving deployment;
- Supports 4K VLAN;
- TCP friendly rate-limiting;
- Featuring Independent Multicast / Broadcast / Unknown Unicast Storm Control;
- Supports IPv6 Management features;
- Green Saving Technology detects number of active ports and cable length to save power consumption (Combo Gigabit ports only).
