Data transmission
| MAC address table |
16000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
12.8 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Console port |
RS-232 |
| SFP/SFP+ slots quantity |
2 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| SFP module slots quantity |
2 |
Networking
| IGMP snooping |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| DHCP server |
Y |
| 10G support |
N |
Power
| Input current |
0.8 A |
| Input voltage |
100 - 240 V |
Performance
| Packet buffer memory |
32 MB |
| Internal memory |
128 MB |
| Flash memory |
32 MB |
Protocols
| Management protocols |
CLI, WEB, SNMP v1, v2c, v3 |
Design
| Safety |
CSA/NRTL, TUV/GS, CB |
Other features
| Input frequency |
50 - 60 Hz |
| Wi-Fi |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Security
| Access Control List (ACL) |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

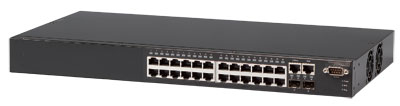

ES3628EA EU/ L3 Fast Ethernet Standalone Switch
The Edge-Core ES3628EA is a Fast Ethernet Layer 3 stackable switch featuring 24 10/100 RJ-45 ports,
2 GE RJ-45 and 2GE SFP ports. It is an ideal workgroup layer 3 switch. grouping users based on department, reducing traffic in separate departments from interfering with each other as well as providing security, while still routing unicast traffic between different vlans or subnets. Using IP Clustering for a virtual stack of up to 36 switches. The whole stack can be managed as a single entity with a single IP address. This switch is enhanced security and advanced QoS to the network edge, while maintaining simplicity of management.
- 24 x 10/100 Base-TX + 2 x Gigabit copper + 2 x Gigabit SFP ports
- Robust security features (IP source guard, 802.1x VLAN assignment, port security)
- Enhanced QoS Features to meet voice and data traffic at the desktop traffic classification needs
- VLAN Stacking (Q-in-Q) to achieve L2VPN Network
- Advanced routing features (OSPF, VRRP, PIM-SM/DM) for more complicated environment
- High availability for service by 802.1s, VRRP, LACP and Redundancy power backup
